Controllers in ASP.NET Core MVC

Controllers in ASP.NET Core MVC Application

In this article, I will discuss the Controllers in ASP.NET Core MVC Applications with Examples. Please read our previous article discussing AddController() vs AddMvc() vs AddControllersWithViews() vs AddRazorPages() Methods in ASP.NET Core Web Application. Controllers are the brains of an ASP.NET Core MVC Application. As part of this article, we will discuss the following pointers.

  1. What is a Controller?
  2. Role of Controller
  3. How do you add a Controller to the ASP.NET Core Application?
  4. What are Action Methods?
  5. How do you call the Action method of a Controller?
  6. How to Pass Parameters in Action Methods?
  7. When should we create a new controller?
  8. How many controllers can we have in a single application?
  9. How Controller Instance Created in ASP.NET Core MVC Application?
What is a Controller in ASP.NET Core?

A Controller is a special class in ASP.NET Core Application with .cs (for C# language) extension. By default, you can see the Controllers reside in the Controllers folder when you create a new ASP.NET Core Application using the Model View Controller (MVC) Project Template. In the ASP.NET Core MVC Application, the controller class should and must be inherited from the Controller base class.

Controllers in the MVC Design Pattern are the components that handle the incoming HTTP Request, work with the model, and select a view to render. The controller is the initial entry point and is responsible for selecting which model types to work with and which view to render (i.e., it controls how the app responds to a given HTTP request).

When the client (browser) sends a request to the server, that request first goes through the request processing pipeline. Once the request passes the request processing pipeline, it will hit the controller. Inside the controller, there are lots of methods (called action methods) that actually handle the incoming HTTP Requests. The action method inside the controller executes the business logic and prepares the response, which is then sent back to the client who initially made the request. For a better understanding, please have a look at the following diagram.

Controllers in ASP.NET Core MVC Application

Role of Controller in MVC:
  1. Group Related Actions: A Controller groups related actions, i.e., Action Methods.
  2. Request Handling: Controllers receive HTTP requests and decide how to process them.
  3. Features Applied: The controller can be equipped with many important features, such as Caching, Routing, Security, etc.
  4. Model Interaction: They often interact with models to retrieve data or save changes.
  5. View Selection: Controllers select a view and provide it with any necessary data for rendering.
How do you add Controllers to the ASP.NET Core Application?

If you create the ASP.NET Core Application using the MVC Project Template, it will create HomeController within the Controllers folder by default. But if you create the ASP.NET Core Application with the Empty Project template, then by default, you will not find the Controllers folder in your project. As we discuss everything from scratch, we will create the ASP.NET Core Application with Empty Template and manually add the Controllers folder and the Controllers.

Step 1: Creating ASP.NET Core Empty Web Application

To create a new Empty ASP.NET Core Web Application, open Visual Studio 2022 and click the Create a new project tab, as shown in the image below.

Creating a new ASP.NET Core Empty Application

Once you click on the Create a new project tab, it will open the Create a new project window. You need to select the ASP.NET Core Empty project template from this window and click the Next button, as shown in the image below.

Creating a new ASP.NET Core Empty Application

Once you click on the Next button, it will open the Configure Your New Project window. Here, you must provide the necessary information to create a new project. First, give an appropriate name for your project (FirstCoreMVCWebApplication), set the location where you want to create this project, and the solution name for the ASP.NET Core Web application. And finally, click on the Create button, as shown in the image below.

How to Set up MVC in ASP.NET Core Application

Once you click on the Next button, the Additional Information window will open. Here, you need to select .NET 6.0 as the Framework, check the Configure for HTTPS and do not use top-level statements check boxes, and finally click the Create button, as shown in the image below.

How to Set up MVC in ASP.NET Core Application

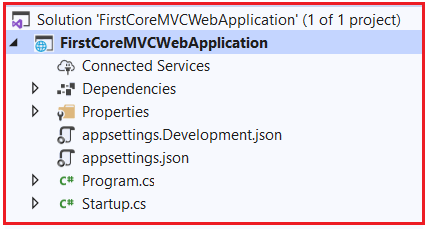

That’s it. Once you click the Create Button, the project will be created with the Empty template with the following folder and file structure.

How to Set up MVC in ASP.NET Core Application

Step 2: Adding Controllers Folder

Once you create the ASP.NET Core Empty Project, we need to add the Controllers folder to create our Controllers. To do so, right-click on the project and then select the add => new folder option from the context menu, which will add a new folder to your project. Just rename the folder as Controllers.

Step 3: Adding Controller in ASP.NET Core

Once you create the Controllers folder, we need to add a controller (StudentController) inside this Controllers folder. To do so, right-click on the Controller folder and select the Add => Controller option from the context menu, which will open the Add Controller window, as shown in the below image. Here, we will create the MVC Controller with the Empty template. So, select the MVC Controller – Empty option and click the Add button, as shown in the image below.

Adding Controller in ASP.NET Core

As you can see in the above image, we have three templates for creating an MVC controller. So you can use any of the following three templates:

  1. MVC Controller – Empty: It will create an Empty Controller.
  2. MVC Controller with read/write actions: This template will create the controller with five action methods to create, read, update, delete, and list entities.
  3. MVC Controller with views, using Entity Framework: This template will create an MVC Controller with actions and Razor views to create, read, update, delete, and list entities using Entity Framework.

Once you click on the Add button, it will open the below window where you need to select the Controller Class – Empty option and give a meaningful name to your controller. Here, I give the name as StudentController and click on the Add button. The Controller name should be suffixed with the word Controller.

Controller Class – Empty

Once you click on the Add button, StudentController will be Added to the Controllers folder, as shown in the image below.

Controllers in ASP.NET Core MVC Application

Understanding StudentController:

Now, let us understand the StudentController class and its different components. Open the StudnetController.cs class, and you should get the following default code in it.

Understanding StudentController:

As you can see in the above image, the StudentController class is inherited from the Controller base class. This controller base class is present in Microsoft.AspNetCore.Mvc namespace, which is why it imports that Microsoft.AspNetCore.Mvc namespace. Now right-click on the Controller base class and select Go to the definition, and you will see the following definition of the Controller class.

Microsoft.AspNetCore.Mvc Controller Class

As you can see in the above image, the Controller is an abstract class having many methods (Json, View, PartialView, OnActionExecuting, ViewComponent, etc.) and properties (TempData, ViewBag, ViewData, etc.). The point that you need to remember is that these methods and properties will be used when we are working with ASP.NET Core MVC Application. Again, if you look, this Controller class is inherited from the ControllerBase class.

Let us see the ControllerBase class definition as well. Right-click on the ControllerBase class and select Go to definition, and you will see the following definition. Here, you will see the RequestData, Response, Request, ModelState, Routing, Model Binder, HttpContext, and many more properties and methods, which we will use as part of our ASP.NET Core MVC Application.

Microsoft.AspNetCore.Mvc ControllerBase Class

Rules for Controller:
  1. Naming Convention: Controllers are typically named with the suffix Controller, like HomeController or ProductController.
  2. Inheriting from ControllerBase: Controllers usually inherit from the ControllerBase or Controller class, which provides many methods and properties for handling requests and responses.

I hope you now have clarity on ASP.NET Core MVC Controllers. Let’s move forward and understand the next topic, which is Action Methods.

What are Action Methods?

All the public methods of a controller class are known as Action Methods. They are created for a specific action or operation in the application. The Controller class can have many related action methods. For example, adding a Student is an action. Modifying the student data is another action. Deleting a student is another action. So, all the related actions should be created inside a particular controller.

An action method can return several types. Let us modify the HomeController as shown below, where one method returns all the student details. Intentionally, we returned a string from this method, but as we progress in this course, we will discuss the real implementation of this method. But for now, we return a string just for learning purposes.

using Microsoft.AspNetCore.Mvc;
namespace FirstCoreMVCWebApplication.Controllers
{
    public class StudentController : Controller
    {
        public string GetAllStudents()
        {
            return "Return All Students";
        }
    }
}
How Do We Call an Action Method of a Controller?

When our application receives an HTTP Request, the controller action method handles it. So, when we say we are hitting a controller, we are hitting its action method. The default structure is http:domain.com/ControllerName/ActionMethodName.

As we are working with the development environment using Visual Studio, the domain name will be our local host with some available port numbers. So, if we want to access the GetAllStudents action method of the HomeController, then the URL: http://localhost:<portnumber>/student/GetAllStudents

Let us prove this. If you run the application and navigate to the above URL, you will not get the output. This is because we created this project using the ASP.NET Core Empty Project template. By default, the Empty Project template will not add the required MVC Service and Middleware Components to the application processing pipeline.

Modifying the Program Class:

Open the Program.cs class file and then copy and paste the code below into it, adding the required MVC service to the dependency injection and the MVC middleware to the request processing pipeline.

namespace FirstCoreMVCWebApplication
{
    public class Program
    {
        public static void Main(string[] args)
        {
            var builder = WebApplication.CreateBuilder(args);

            // Add Framework MVC Services to the container.
            builder.Services.AddMvc();

            var app = builder.Build();

            //Adding MVC Middleware
            app.UseRouting();
            app.UseEndpoints(endpoints =>
            {
                //Configuring the MVC middleware to the request processing pipeline
                endpoints.MapDefaultControllerRoute();
            });

            app.Run();
        }
    }
}

With the above change in place, now run the application and navigate to the URL http://localhost:<portnumber>/student/GetAllStudents, and you should get the output as expected, as shown in the image below.

Role of Controllers in ASP.NET Core

Please have a look at the following image to better understand how the above URL mapped to the GetAllStudents action method of the Student controller.

How to call the Action method of a Controller?

How to Pass Parameters in Action Methods?

Let us understand this with an example. Now, we want to search for students based on their names. To do so, add the following action method inside the Student Controller.

public string GetStudentsByName(string name)
{
    return $"Return All Students with Name : {name}";
}

Now run the application, navigate to the URL http://localhost:<portnumber>/student/GetStudentsByName?name=james, and see the output shown in the image below.

How to Pass Parameters in Action Methods in ASP.NET Core MVC Application?

In this case, the query string parameter name is mapped with the GetStudentsByName action method name parameter. In our upcoming articles, we will discuss parameter mapping, default mapping, and more.

When should we create a new controller?

Whenever we need to define a new group of actions or operations in our applications, we need to create a new controller. For example, to do operations of students, we can create a Student Controller. To manage the security of your application, like login, logout, etc., you can create a Security Controller.

How Many Controllers can we have in a Single Application?

It depends on the application. At least one controller is required to perform operations. Maximum n number of Controllers we can have into one application.

How is Controller Instance Created in ASP.NET Core MVC?

We have discussed how to Create and use Controllers in ASP.NET Core MVC Applications. We also understand that the Controller Action Method will handle the incoming HTTP Request. But if you look at the controller, you will see that Controller is a class inherited from the Controller Base class, and this class has a method called Action Method.

We also know that if we want to invoke a method (non-static), then we need an instance of that class. Now, the question is, who, when, and how created the Controller class instance, and how is the action method called using that instance? Let us proceed and understand this with an example.

Creating Controller Instance in ASP.NET Core MVC:

To create an ASP.NET Core MVC Application, we need to add the required MVC Services and Middleware Components into the Request Processing Pipeline. For example, you can add the MVC services using the following statement within your Main method of the Program.cs class file in .NET 6 Application.

How Controller Instance is Created in ASP.NET Core MVC?

Then, we need to configure the MVC Middleware into the Request Processing Pipeline using either conventional or attribute routing. For example, the following code will add the MVC Middleware Component to the Application Processing Pipeline.

blank

So, in the ASP.NET Core MVC Web Application, when the client sends an HTTP Request, the MVC Middleware Component receives it. Once the MVC Middleware Component receives the request, based on conventional or attribute routing, it selects the controller and action method to execute.

However, in order to execute the action method, the MVC Middleware must create an instance of the selected controller. This makes sense, as we know that if we want to invoke a non-static method, we need an instance of the class. This is not different from executing a controller action method.

The MVC Middleware uses Reflection to create an instance of the Controller class. This will use the following IControllerActivator class. As you can see, this interface provides three methods: Create, Release, and ReleaseAsync.

IControllerActivator Interface in ASP.NET Core MVC

The meaning of each method is as follows:

  1. object Create(ControllerContext context): This method is used to Create a controller. Here, the parameter context is used to execute the action method.
  2. void Release(ControllerContext context, object controller): This method is used to Release a controller. Here, the parameter context is used to execute the action method. The parameter controller specifies the controller to release.
  3. ValueTask ReleaseAsync(ControllerContext context, object controller): This is the same as the Release method, but it Releases a controller asynchronously.

Now, the above interface is implemented by the DefaultControllerActivator class, which implements the IControllerActivator interface methods and provides the logic to create and release the controller. If you go to the definition of DefaultControllerActivator class, then you will see the following.

DefaultControllerActivator class

As you can see, this class provides implementations for the IControllerActivator interface methods. Further, the ASP.NET Core Framework uses the DefaultControllerActivator constructor, which takes the ITypeActivatorCache instance to create the controller. This is how the controller instance is created in the ASP.NET Core MVC Application.

In the next article, I will discuss Models in ASP.NET Core MVC with Examples. In this article, I try to explain ASP.NET Core MVC Controllers with examples. I hope you enjoy this ASP.NET Core MVC Controllers article.
