SemaphoreSlim Class in C#

SemaphoreSlim Class in C# with Examples

In this article, I am going to discuss How to Implement Thread Synchronization using SemaphoreSlim Class in C# with Examples. Please read our previous article where we discussed How to Implement Thread Synchronization using Semaphore Class in C# with Examples. The SemaphoreSlim Class represents a lightweight alternative to Semaphore that limits the number of threads that can access a resource or pool of resources concurrently.

Why do we need SemaphoreSlim as we already have Lock, Monitor, Mutex, and Semaphore in C#?

Like Lock, Monitor, Mutex, and Semaphore, the SemaphoreSlim class in C# is also used to provide thread safety. The Lock and Monitors are basically used to provide thread safety for Internal Threads i.e. the threads generated by the application itself. On the other hand, Mutex and Semaphore ensure thread safety for threads that are generated by the external applications i.e. External Threads. Using Mutex, only one external thread can access our application code at any given point in time. And, if we want more control over the number of external threads that can access our application code, then can use Semaphore in C#.

Using Lock and Monitor, only one internal thread can access our application code at any given point in time. But, if we want more control over the number of internal threads that can access our application code, then we need to use SemaphoreSlim class in C#. For a better understanding, please have a look at the below image.

Why do we need SemaphoreSlim as we already have Lock, Monitor, Mutex, and Semaphore in C#?

What is SemaphoreSlim class in C#?

The SemaphoreSlim class is the recommended semaphore for synchronization within a single app. A lightweight semaphore controls access to a pool of resources that is local to your application. It Represents a lightweight alternative to Semaphore that limits the number of threads that can access a resource or pool of resources concurrently.

Constructors, and Methods of SemaphoreSlim Class in C#:

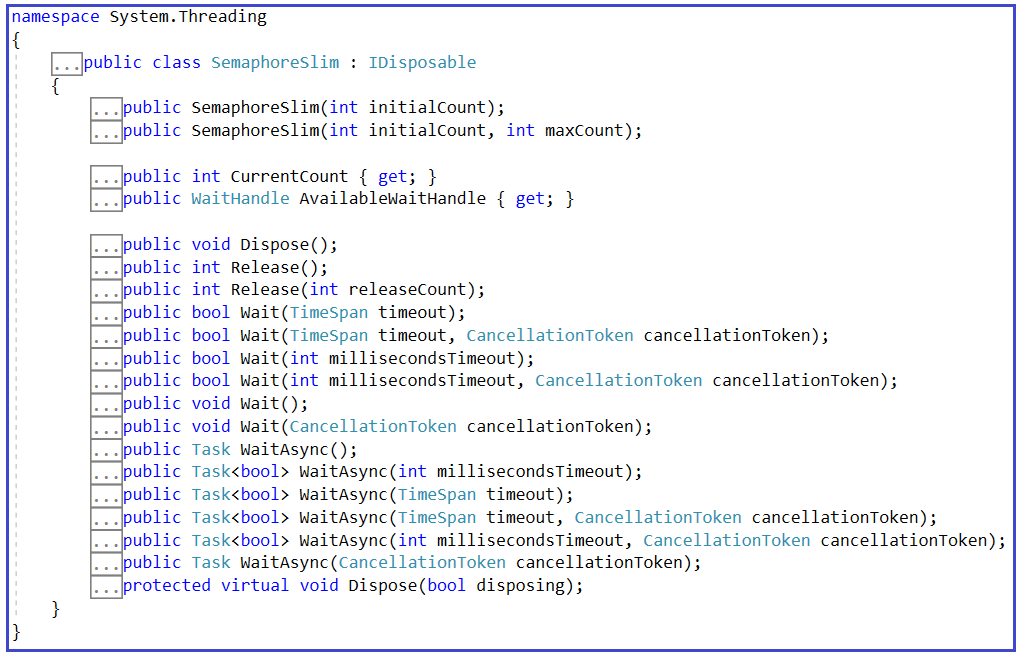

Let us understand the different Constructors, and Methods of SemaphoreSlim Class in C#. If you right-click on the SemaphoreSlim class and select go to definition, then you will see the following class definition.

Constructors, and Methods of SemaphoreSlim Class in C#

Constructors of SemaphoreSlim Class in C#:

The SemaphoreSlim Class in C# provides the following two constructors that we can use to create an instance of the SemaphoreSlim class.

  1. SemaphoreSlim(int initialCount): It initializes a new instance of the SemaphoreSlim class, specifying the initial number of requests that can be granted concurrently. Here, the parameter initialCount specifies the initial number of requests for the semaphore that can be granted concurrently. It will throw ArgumentOutOfRangeException if the initialCount is less than 0.
  2. SemaphoreSlim(int initialCount, int maxCount): It initializes a new instance of the SemaphoreSlim class, specifying the initial and maximum number of requests that can be granted concurrently. Here, the parameter initialCount specifies the initial number of requests for the semaphore that can be granted concurrently. And the parameter maxCount specifies the maximum number of requests for the semaphore that can be granted concurrently. It will throw ArgumentOutOfRangeException if initialCount is less than 0, or initialCount is greater than maxCount, or maxCount is equal to or less than 0.
Methods of SemaphoreSlim Class in C#:

The SemaphoreSlim Class in C# provides the following methods.

Wait Method:

There are multiple overloaded versions of the Wait method available in SemaphoreSlim Class. They are as follows:

  1. Wait(): It blocks the current thread until it can enter the System.Threading.SemaphoreSlim.
  2. Wait(TimeSpan timeout): It blocks the current thread until it can enter the SemaphoreSlim, using a TimeSpan to specify the timeout. It returns true if the current thread successfully entered the SemaphoreSlim; otherwise, false.
  3. Wait(CancellationToken cancellationToken): It blocks the current thread until it can enter the SemaphoreSlim while observing a CancellationToken.
  4. Wait(TimeSpan timeout, CancellationToken cancellationToken): It blocks the current thread until it can enter the SemaphoreSlim, using a TimeSpan that specifies the timeout, while observing a CancellationToken. It returns true if the current thread successfully entered the SemaphoreSlim; otherwise, false.
  5. Wait(int millisecondsTimeout): It blocks the current thread until it can enter the SemaphoreSlim, using a 32-bit signed integer that specifies the timeout. It returns true if the current thread successfully entered the SemaphoreSlim; otherwise, false.
  6. Wait(int millisecondsTimeout, CancellationToken cancellationToken): It blocks the current thread until it can enter the SemaphoreSlim, using a 32-bit signed integer that specifies the timeout, while observing a CancellationToken. It returns true if the current thread successfully entered the SemaphoreSlim; otherwise, false.
Parameters:

The following are the parameter descriptions used in the Wait methods.

  1. timeout: A TimeSpan that represents the number of milliseconds to wait, a TimeSpan that represents -1 milliseconds to wait indefinitely, or a TimeSpan that represents 0 milliseconds to test the wait handle and return immediately.
  2. cancellationToken: The System.Threading.CancellationToken to observe.
  3. millisecondsTimeout: The number of milliseconds to wait, System.Threading.Timeout.Infinite(-1) to wait indefinitely, or zero to test the state of the wait handle and return immediately.

Note: The Async versions of all the above methods are also available.

Release Method:

There are two overloaded versions of the Release method available in SemaphoreSlim class. They are as follows:

  1. Release(): It releases the SemaphoreSlim object once. It returns the previous count of the SemaphoreSlim.
  2. Release(int releaseCount): It releases the SemaphoreSlim object a specified number of times. It returns the previous count of the SemaphoreSlim. Here, the parameter releaseCount specifies the number of times to exit the semaphore.
How SemaphoreSlim work in C#?

When we instantiate a semaphore, we can specify the maximum number of threads that can enter the semaphore concurrently. We also specify the initial number of threads that can enter the semaphore concurrently. This defines the semaphore’s count. The count is decremented each time a thread enters the semaphore and incremented each time a thread releases the semaphore.

To enter the semaphore, a thread has to call one of the Wait or WaitAsync overloads. To release the semaphore, the thread has to call one of the Release methods. When the count reaches zero, subsequent calls to one of the Wait methods block until other threads release the semaphore. If multiple threads are blocked, there is no guaranteed order, such as FIFO or LIFO, that controls when threads enter the semaphore.

Example to Understand SemaphoreSlim Class in C#:

In the below example, we have created a Function called SemaphoreSlimFunction which gives access to a resource, the Wait method blocks the current thread until it can access the resource, and the Release method is required to release a resource once work is done. To understand SemaphoreSlim, we created five threads inside the Main method which will try to access SemaphoreSlimFunction simultaneously but we limited the access to three using the SemaphoreSlim object.

using System;
using System.Threading;

namespace SemaphoreSlimDemo
{
    class Program
    {
        //only 3 threads can access resource simulteniously
        static SemaphoreSlim semaphore = new SemaphoreSlim(initialCount:3);

        static void Main(string[] args)
        {
            for (int i = 1; i <= 5; i++)
            {
                int count = i;
                Thread t = new Thread(() => SemaphoreSlimFunction("Thread " + count, 1000 * count));
                t.Start();
            }
            Console.ReadLine();
        }

        static void SemaphoreSlimFunction(string name, int seconds)
        {
            Console.WriteLine($"{name} Waits to access resource");
            semaphore.Wait();
            Console.WriteLine($"{name} was granted access to resource");

            Thread.Sleep(seconds);
            Console.WriteLine($"{name} is completed");
            semaphore.Release();
        }
    }
}
Output:

Example to Understand SemaphoreSlim Class in C#

Note: We use SemaphoreSlim construct to limit the concurrent threads that can access a resource. If threads trying to access a resource are more than the declared limit only limited threads will be granted access and others will have to wait.

Another Example to Understand SemaphoreSlim Class in C#:

In the below example we create one SemaphoreSlim instance with a maximum count of three threads and an initial count of zero threads. The example then starts five tasks, all of which block waiting for the semaphore. The main thread calls the Release(Int32) overload to increase the semaphore count to its maximum, which allows three tasks to enter the semaphore. Each time the semaphore is released, the previous semaphore count is displayed.

using System;
using System.Threading;
using System.Threading.Tasks;

public class Example
{
    // Create the semaphore.
    private static SemaphoreSlim semaphore = new SemaphoreSlim(0, 3);

    // A padding interval to make the output more orderly.
    private static int padding;

    public static void Main()
    {
        Console.WriteLine($"{semaphore.CurrentCount} tasks can enter the semaphore");
        Task[] tasks = new Task[5];

        // Create and start five numbered tasks.
        for (int i = 0; i <= 4; i++)
        {
            tasks[i] = Task.Run(() =>
            {
                // Each task begins by requesting the semaphore.
                Console.WriteLine($"Task {Task.CurrentId} begins and waits for the semaphore");

                int semaphoreCount;
                semaphore.Wait();
                try
                {
                    Interlocked.Add(ref padding, 100);
                    Console.WriteLine($"Task {Task.CurrentId} enters the semaphore");
                    // The task just sleeps for 1+ seconds.
                    Thread.Sleep(1000 + padding);
                }
                finally
                {
                    semaphoreCount = semaphore.Release();
                }
                Console.WriteLine($"Task {Task.CurrentId} releases the semaphore; previous count: {semaphoreCount}");
            });
        }

        // Wait for one second, to allow all the tasks to start and block.
        Thread.Sleep(1000);

        // Restore the semaphore count to its maximum value.
        Console.Write("Main thread calls Release(3) --> ");
        semaphore.Release(3);
        Console.WriteLine($"{semaphore.CurrentCount} tasks can enter the semaphore");
        // Main thread waits for the tasks to complete.
        Task.WaitAll(tasks);

        Console.WriteLine("Main thread Exits");
        Console.ReadKey();
    }
}

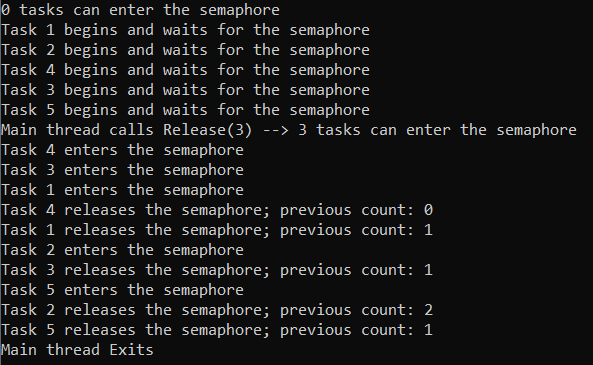

Output:

blank

In the next article, I am going to discuss Why and How a Deadlock Occurs in a Multithreaded Application in C# with Examples. Here, in this article, I try to explain How to Implement Thread Synchronization using SemaphoreSlim Class in C# with Examples. I hope you enjoy this article and understand the concept of SemaphoreSlim Class in C# with Examples.
