Model Binding in ASP.NET Core Web API

In this article, I will discuss Model Binding in ASP.NET Core Web API with a Real-time Example. Please read our previous article discussing Return Types and Status Codes in ASP.NET Core Web API with Examples.

What is Model Binding in ASP.NET Core?

Model Binding in ASP.NET Core Web API is the process that automatically maps incoming HTTP request data, from routes, query strings, headers, forms, or request body, to controller action parameters or model objects.

Instead of manually reading and parsing values from HttpContext.Request, the framework intelligently handles this for you, converting raw input into strongly-typed .NET objects. This makes your code cleaner, safer, and easier to maintain by removing repetitive parsing logic and ensuring consistent validation across all API endpoints.

This feature abstracts the complexities of extracting and converting raw request data from HttpRequest into strongly-typed .NET objects. ASP.NET Core uses model binding to map data from multiple sources:

  • Query Strings: Parameters appended to the URL.
  • Route Data: Parameters defined in the URL path.
  • Request Body: Payload data, often in JSON or XML format (commonly for POST, PUT, or PATCH requests).
  • Headers: Custom data sent within HTTP headers.

Key Idea: Model binding converts raw request data (text, JSON, form, etc.) into .NET objects, making APIs cleaner, type-safe, and easy to maintain. So, you don’t need to parse request data manually; the framework does it for you.

What are the Model Binding Techniques Used in ASP.NET Core Web API?

ASP.NET Core provides several techniques for model binding depending on the source of the data.
You can explicitly tell the framework where to look for data using specific attributes.

[FromRoute] – Binding from Route Parameters

The [FromRoute] is used when data is part of the URL Route itself. The model binder reads the value from the route template defined in your controller’s endpoint. It’s commonly used for identifying a resource by its unique ID, such as /api/products/5.

Syntax:
[HttpGet(“products/{id}”)]
public IActionResult GetProduct([FromRoute] int id)

Use Cases:
  • When your API endpoint includes dynamic route segments.
  • To extract resource identifiers like userId, orderId, or productId.
  • When designing RESTful URLs, such as /api/users/{id} or /api/orders/{orderId}.
[FromQuery] – Binding from Query String

The [FromQuery] tells ASP.NET Core to bind data from the Query String Parameters appended to the URL. It’s best suited for optional parameters, filters, pagination, or sorting options where you want to keep the URL readable and flexible.

Syntax:
[HttpGet(“products”)]
public IActionResult SearchProducts([FromQuery] string category, [FromQuery] int page = 1)

Use Cases:
  • Implementing filtering, sorting, or pagination (/api/products?category=Electronics&page=2).
  • Passing optional parameters without changing the route structure.
  • Searching, filtering, or listing data dynamically.
[FromBody] – Binding from Request Body

The [FromBody] attribute is used when data is sent in the HTTP Request Body, usually as JSON or XML. ASP.NET Core uses input formatters (like JSON or XML) to deserialize the body into a strongly-typed object. Only one parameter per action can use [FromBody] because the request body can be read only once.

Syntax:
[HttpPost(“add”)]
public IActionResult AddProduct([FromBody] ProductDTO product)

Use Cases:
  • When sending complex objects or large data in POST/PUT requests.
  • For creating or updating records (e.g., new user, new product).
  • When consuming APIs with JSON request bodies.
[FromHeader] – Binding from Request Headers

[FromHeader] binds values from specific HTTP request headers, such as Authorization, Accept-Language, or custom headers used for security or tracking.

Syntax:
[HttpGet(“userinfo”)]
public IActionResult GetUser([FromHeader(Name = “X-User-Id”)] string userId)

Use Cases:
  • Reading authentication tokens, version information, or API keys from headers.
  • Custom tracking IDs or correlation IDs.
  • Language or localization preferences via headers.
[FromServices] – Binding from Dependency Injection Container

The [FromServices] attribute tells ASP.NET Core to resolve a parameter from the Dependency Injection (DI) Container instead of the request. It’s not about client-supplied data; it’s about injecting services (e.g., repositories, loggers, configuration).

That means [FromServices] allows us to inject Services Registered in the DI Container directly into an action method. It’s ideal when we need a service just for that specific action without adding it to the constructor.

Syntax:
[HttpGet(“config”)]
public IActionResult GetConfig([FromServices] IConfiguration config)
{
      var env = config[“ASPNETCORE_ENVIRONMENT”];
      return Ok(env);
}

Use Cases:
  • Accessing a lightweight or specialized service in one controller method.
  • Avoiding constructor clutter for infrequently used services.
  • Logging, Caching, or health-check services.
What is Default Binding (No Attribute)?

When no attribute like [FromBody] or [FromQuery] is specified, ASP.NET Core automatically decides where to bind the data from; this is called Default Model Binding.

  • Complex types → read from Body by default.
  • Simple types not in route → read from Query.
  • Route parameters → from Route.
  • Files → from Form.

Manual Data Reading in ASP.NET Core Web API (Without Model Binding)

We will create a simple in-memory Product Management API that performs operations like reading product details, adding new products, and checking system health, all by manually extracting and validating request data. Clients can:

  1. Retrieve product details by route.
  2. Search products by query parameters.
  3. Fetch all active products using a header-based authentication key.
  4. Add a new product via a JSON request body.
  5. Apply a discount to a product (combination of route, query, and header).

Everything is handled manually, without model binding or [ApiController].

Step 1: Create the Project

First, create a new ASP.NET Core Web API Project, name it ModelBindingDemo.

Step 2: Create an In-Memory Product Store

First, create 2 folders named Models and Services in the Project root directory. Inside the Models folder, create a class file named Product.cs, and copy-paste the following code.

namespace ModelBindingDemo.Models
{
    public class Product
    {
        public int Id { get; set; }
        public string? Name { get; set; }
        public decimal Price { get; set; }
        public string? Category { get; set; }
        public bool IsActive { get; set; }
        public int Stock { get; set; }
        public double Rating { get; set; }
        public DateTime CreatedDate { get; set; }
    }
}
Creating Product Service Interface

Create a class file named IProductService.cs within the Services folder, and then copy and paste the following code.

using ModelBindingDemo.Models;
namespace ModelBindingDemo.Services
{
    public interface IProductService
    {
        IEnumerable<Product> GetAll();
        Product? GetById(int id);
        IEnumerable<Product> Search(string? category, decimal? minPrice, decimal? maxPrice);
        void Add(Product product);
        bool UpdatePrice(int id, decimal discountPercent);
    }
}
Creating Product Service Implementation

Create a class file named ProductService.cs within the Services folder, and then copy and paste the following code.

using ModelBindingDemo.Models;

namespace ModelBindingDemo.Services
{
    public class ProductService : IProductService
    {
        private readonly List<Product> _products = new()
        {
            new Product { Id = 1, Name = "Laptop", Price = 65000, Category = "Electronics", IsActive = true, Stock = 20, Rating = 4.5, CreatedDate = DateTime.Now.AddDays(-10) },
            new Product { Id = 2, Name = "Headphones", Price = 2500, Category = "Audio", IsActive = true, Stock = 50, Rating = 4.2, CreatedDate = DateTime.Now.AddDays(-5) },
            new Product { Id = 3, Name = "Smartwatch", Price = 12000, Category = "Wearables", IsActive = false, Stock = 10, Rating = 3.9, CreatedDate = DateTime.Now.AddDays(-15) },
            new Product { Id = 4, Name = "Keyboard", Price = 1500, Category = "Accessories", IsActive = true, Stock = 35, Rating = 4.1, CreatedDate = DateTime.Now.AddDays(-2) }
        };

        public IEnumerable<Product> GetAll()
        {
            return _products;
        }

        public Product? GetById(int id)
        {
            return _products.FirstOrDefault(p => p.Id == id);
        }

        public IEnumerable<Product> Search(string? category, decimal? minPrice, decimal? maxPrice)
        {
            var query = _products.AsQueryable();
            if (!string.IsNullOrWhiteSpace(category))
                query = query.Where(p => p.Category!.Equals(category, StringComparison.OrdinalIgnoreCase));
            if (minPrice.HasValue)
                query = query.Where(p => p.Price >= minPrice.Value);
            if (maxPrice.HasValue)
                query = query.Where(p => p.Price <= maxPrice.Value);

            return query.ToList();
        }

        public void Add(Product product)
        {
            product.Id = _products.Max(p => p.Id) + 1;
            product.CreatedDate = DateTime.Now;
            _products.Add(product);
        }

        public bool UpdatePrice(int id, decimal discountPercent)
        {
            var product = _products.FirstOrDefault(p => p.Id == id);
            if (product == null) return false;

            var discountAmount = product.Price * discountPercent / 100;
            product.Price -= discountAmount;
            return true;
        }
    }
}
Register Service in Program.cs:

Please add the following statement inside the Program class file.

builder.Services.AddSingleton<IProductService, ProductService>();

Step 3: Create the Controller – Manual Data Extraction

Create an API Empty Controller named ProductsController within the Controllers folder, and copy-paste the following code.

using Microsoft.AspNetCore.Mvc;
using ModelBindingDemo.Models;
using ModelBindingDemo.Services;
using System.Text.Json;

namespace ModelBindingDemo.Controllers
{
    [Route("api/[controller]")]
    public class ProductsController : ControllerBase
    {
        private readonly ILogger<ProductsController> _logger;
        private readonly IProductService _productService;

        // Constructor injection for logger and service
        public ProductsController(IProductService productService, ILogger<ProductsController> logger)
        {
            _productService = productService;
            _logger = logger;
        }

        // --------------------------------------------------------------
        // Read from Route Data
        // --------------------------------------------------------------
        // GET /api/products/details/2
        [HttpGet("details/{id}")]
        public IActionResult GetProductById()
        {
            // Step 1: Read "id" from route values
            var idValue = HttpContext.Request.RouteValues["id"]?.ToString();

            // Step 2: Validate and parse it into an integer
            if (!int.TryParse(idValue, out int productId))
                return BadRequest("Invalid Product ID format.");

            // Step 3: Use injected service to fetch product
            var product = _productService.GetById(productId);

            // Step 4: Check existence
            if (product == null)
                return NotFound($"Product with ID {productId} not found.");

            _logger.LogInformation($"Product {productId} fetched at {DateTime.UtcNow}");
            return Ok(product);
        }

        // --------------------------------------------------------------
        // Read from Query String
        // --------------------------------------------------------------
        // GET /api/products/search?category=Electronics&minPrice=2000&maxPrice=70000
        [HttpGet("search")]
        public IActionResult SearchProducts()
        {
            // Step 1: Extract query parameters
            string? category = HttpContext.Request.Query["category"];
            decimal.TryParse(HttpContext.Request.Query["minPrice"], out decimal minPrice);
            decimal.TryParse(HttpContext.Request.Query["maxPrice"], out decimal maxPrice);

            // Step 2: Call service with filters
            var result = _productService.Search(
                category,
                minPrice > 0 ? minPrice : null,
                maxPrice > 0 ? maxPrice : null
            );

            // Step 3: Log the query and return result
            _logger.LogInformation($"Search executed for Category={category}, MinPrice={minPrice}, MaxPrice={maxPrice}");
            return Ok(result);
        }

        // --------------------------------------------------------------
        // Read from Header
        // --------------------------------------------------------------
        // GET /api/products/all
        // Header: X-Api-Key: secret123
        [HttpGet("all")]
        public IActionResult GetAllProducts()
        {
            // Step 1: Extract custom header
            var apiKey = HttpContext.Request.Headers["X-Api-Key"].ToString();

            // Step 2: Validate header presence
            if (string.IsNullOrWhiteSpace(apiKey))
                return Unauthorized("Missing API key.");

            // Step 3: Check header value for access control
            if (apiKey != "secret123")
                return Unauthorized("Invalid API key.");

            // Step 4: Get all active products from service
            var products = _productService.GetAll().Where(p => p.IsActive);

            _logger.LogInformation("Active products fetched using API key authentication.");
            return Ok(products);
        }

        // --------------------------------------------------------------
        // Read from Request Body (Manual JSON Parsing)
        // --------------------------------------------------------------
        // POST /api/products/add
        // Body: { "name":"Tablet","price":25000,"category":"Electronics","isActive":true,"stock":15,"rating":4.6 }
        [HttpPost("add")]
        public async Task<IActionResult> AddProduct()
        {
            // Step 1: Read raw JSON body from request
            string body;
            using (var reader = new StreamReader(HttpContext.Request.Body))
                body = await reader.ReadToEndAsync();

            // Step 2: Validate empty request
            if (string.IsNullOrWhiteSpace(body))
                return BadRequest("Empty request body.");

            // Step 3: Try to deserialize JSON into Product object
            Product? product;
            try
            {
                product = JsonSerializer.Deserialize<Product>(body, new JsonSerializerOptions
                {
                    PropertyNameCaseInsensitive = true // Allows flexible casing
                });
            }
            catch
            {
                return BadRequest("Invalid JSON format.");
            }

            // Step 4: Manual validation
            if (product == null || string.IsNullOrWhiteSpace(product.Name) || product.Price <= 0)
                return BadRequest("Invalid product data. Name and Price are required.");

            // Step 5: Add to in-memory collection using service
            _productService.Add(product);

            _logger.LogInformation($"New product '{product.Name}' added successfully at {DateTime.UtcNow}.");
            return Ok(product);
        }

        // --------------------------------------------------------------
        // Mix of Multiple Parameters (Route + Query + Header)
        // --------------------------------------------------------------
        // PUT /api/products/discount/2?discountPercent=10
        // Header: X-Api-Key: secret123
        [HttpPut("discount/{id}")]
        public IActionResult ApplyDiscount()
        {
            // Step 1: Read from Route
            var routeId = HttpContext.Request.RouteValues["id"]?.ToString();
            if (!int.TryParse(routeId, out int productId))
                return BadRequest("Invalid product ID.");

            // Step 2: Read from Query String
            var discountQuery = HttpContext.Request.Query["discountPercent"].ToString();
            if (!decimal.TryParse(discountQuery, out decimal discountPercent) || discountPercent <= 0)
                return BadRequest("Invalid discount percent.");

            // Step 3: Read from Header (simulate authentication)
            var apiKey = HttpContext.Request.Headers["X-Api-Key"].ToString();
            if (string.IsNullOrWhiteSpace(apiKey))
                return Unauthorized("Missing API key.");
            if (apiKey != "secret123")
                return Unauthorized("Invalid API key.");

            // Step 4: Manually fetch service (for demo purposes)
            var productService = HttpContext.RequestServices.GetService<IProductService>();
            if (productService == null)
                return StatusCode(500, "Product service unavailable.");

            // Step 5: Apply discount logic
            bool updated = productService.UpdatePrice(productId, discountPercent);
            if (!updated)
                return NotFound($"No product found with ID {productId}.");

            _logger.LogInformation($"Discount of {discountPercent}% applied to Product ID {productId} at {DateTime.UtcNow}.");
            return Ok($"Product #{productId} updated successfully with {discountPercent}% discount.");
        }
    }
}
Drawbacks or Challenges without Model Binding

While the above example works, it exposes the following drawbacks or challenges of doing everything manually:

Excessive Duplicate Code

Every action method contains repetitive code for reading route values, query strings, headers, and request bodies. For instance, HttpContext.Request.RouteValues, HttpContext.Request.Query, and HttpContext.Request.Body appears across multiple methods. That means, instead of focusing on business logic, developers spend most of their time handling raw request parsing. As the number of endpoints grows, this repetition becomes unmanageable.

Manual Type Conversion and Parsing Errors

Since all incoming data is read as strings, we must manually convert them into appropriate .NET types (int.TryParse, decimal.TryParse, etc.). Each conversion introduces potential for runtime errors and edge cases (e.g., invalid numbers or missing query parameters). A single invalid input can crash the endpoint or result in confusing error messages. Model Binding, on the other hand, performs all these conversions automatically and consistently across all actions.

Lack of Centralized Validation

For every request, the developer must manually check for nulls, empty values, invalid formats, and business constraints using multiple if statements. This duplication not only increases code size but also makes it difficult to enforce consistent validation rules across different APIs. When validation rules change, every action method must be updated manually, increasing maintenance costs and risk of missing updates in some endpoints.

Error Handling is Tedious and Inconsistent

In the manual approach, every possible failure (bad route value, missing header, malformed JSON, invalid discount, etc.) must be caught and handled individually with explicit BadRequest(), Unauthorized(), or NotFound() responses. This creates inconsistencies; one endpoint may return a plain string message, while another may return a differently formatted JSON error. With [ApiController] and Model Binding, these errors are handled automatically, and all validation failures return consistent 400 Bad Request responses with structured error details.

Tight Coupling Between Request Handling and Business Logic

Parsing, validation, and business logic all live together inside controller methods. This tight coupling violates the Separation of Concerns principle, making the code harder to read, test, and extend. Any change in input format or validation rules forces you to modify controller logic, potentially affecting unrelated business processes. With Model Binding, these concerns are separated; the controller only receives already validated and properly bound data.

No Automatic Validation or 400 Response

Without Model Binding and [ApiController], the framework doesn’t automatically validate incoming models or return standardized 400 responses for invalid inputs. You must explicitly check ModelState.IsValid or perform manual checks on each field. This leads to redundant validation logic across actions and potential gaps where invalid requests might still pass through.

Poor Scalability and Maintainability

As the application grows and the number of endpoints increases, maintaining manual parsing logic becomes a nightmare. Adding new fields, changing JSON structure, or introducing new query parameters forces repetitive edits in multiple methods. This not only increases the risk of bugs but also slows down development. Model Binding eliminates this issue by handling input parsing and mapping dynamically through attributes and conventions.

Inconsistent API Experience for Clients

Because every action manually constructs responses and error messages, there’s a high chance of inconsistency in API output. One endpoint might return “Invalid ID”, while another returns {“error”: “Invalid ID”}. These inconsistencies confuse client applications and reduce overall API reliability. The [ApiController] convention, in contrast, standardizes error responses, status codes, and validation behavior automatically.

Higher Development and Maintenance Cost

Developers end up writing hundreds of extra lines of repetitive code just to handle input parsing and validation. Over time, maintaining this codebase becomes slower and more expensive, especially when integrating with multiple clients or adding new features. Model Binding drastically reduces this overhead, leading to cleaner controllers, faster development cycles, and fewer maintenance headaches.

Using Model Binding & [ApiController] in ASP.NET Core Web API

In ASP.NET Core Web API, Model Binding automatically maps incoming HTTP request data (from route, query string, headers, form, or body) to method parameters and model objects. When combined with the [ApiController] attribute, the framework:

  • Automatically Validates Incoming Models and populates ModelState.
  • Returns 400 Bad Request responses automatically if validation fails.
  • Provides Cleaner and More Maintainable controller code.
  • Reduces duplicate code by eliminating repetitive parsing, type conversion, and validation code.

So, instead of manually reading values from HttpContext.Request, ASP.NET Core does all the heavy lifting for you. Let’s see this in action.

Updated Product Entity – With Data Annotations

Please modify the Product Entity as follows.

using System.ComponentModel.DataAnnotations;
namespace ModelBindingDemo.Models
{
    public class Product
    {
        public int Id { get; set; }

        [Required(ErrorMessage = "Product name is required.")]
        [StringLength(100, MinimumLength = 3, ErrorMessage = "Product name must be between 3 and 100 characters.")]
        public string Name { get; set; } = null!;

        [Required(ErrorMessage = "Price is required.")]
        [Range(1, 100000, ErrorMessage = "Price must be between 1 and 100000.")]
        public decimal Price { get; set; }

        [Required(ErrorMessage = "Category is required.")]
        [StringLength(50, ErrorMessage = "Category name cannot exceed 50 characters.")]
        public string Category { get; set; } = null!;

        public bool IsActive { get; set; } = true;

        [Range(0, 10000, ErrorMessage = "Stock must be between 0 and 10000.")]
        public int Stock { get; set; }

        [Range(0.0, 5.0, ErrorMessage = "Rating must be between 0.0 and 5.0.")]
        public double Rating { get; set; }
        public DateTime CreatedDate { get; set; } = DateTime.UtcNow;
    }
}
ProductsController — Using Model Binding & [ApiController]

Please modify the ProductsController as follows.

using Microsoft.AspNetCore.Mvc;
using ModelBindingDemo.Models;
using ModelBindingDemo.Services;

namespace ModelBindingDemo.Controllers
{
    // Enables automatic model binding, validation, and 400 error responses
    [ApiController]
    [Route("api/[controller]")]
    public class ProductsController : ControllerBase
    {
        private readonly ILogger<ProductsController> _logger;
        private readonly IProductService _productService;

        public ProductsController(IProductService productService, ILogger<ProductsController> logger)
        {
            _productService = productService;
            _logger = logger;
        }

        // --------------------------------------------------------------
        // Route Data Example
        // --------------------------------------------------------------
        // GET /api/products/details/2
        [HttpGet("details/{id}")]
        public IActionResult GetProductById([FromRoute] int id)
        {
            // Model Binding automatically maps {id} → int id
            var product = _productService.GetById(id);

            if (product == null)
                return NotFound($"Product with ID {id} not found.");

            _logger.LogInformation($"Product {id} fetched successfully at {DateTime.UtcNow}.");
            return Ok(product);
        }

        // --------------------------------------------------------------
        // Query String Example
        // --------------------------------------------------------------
        // GET /api/products/search?category=Electronics&minPrice=2000&maxPrice=70000
        [HttpGet("search")]
        public IActionResult SearchProducts(
            [FromQuery] string? category,
            [FromQuery] decimal? minPrice,
            [FromQuery] decimal? maxPrice)
        {
            // Model Binding automatically maps query string parameters
            var result = _productService.Search(category, minPrice, maxPrice);

            _logger.LogInformation($"Search executed for Category={category}, MinPrice={minPrice}, MaxPrice={maxPrice}.");
            return Ok(result);
        }

        // --------------------------------------------------------------
        // Header Example
        // --------------------------------------------------------------
        // GET /api/products/all
        // Header: X-Api-Key: secret123
        [HttpGet("all")]
        public IActionResult GetAllProducts([FromHeader(Name = "X-Api-Key")] string apiKey)
        {
            // [FromHeader] automatically binds header values
            if (string.IsNullOrWhiteSpace(apiKey))
                return Unauthorized("Missing API key.");

            if (apiKey != "secret123")
                return Unauthorized("Invalid API key.");

            var products = _productService.GetAll().Where(p => p.IsActive);

            _logger.LogInformation("Active products fetched successfully using API key authentication.");
            return Ok(products);
        }

        // --------------------------------------------------------------
        // Request Body Example (with Data Annotations)
        // --------------------------------------------------------------
        // POST /api/products/add
        // Body: { "name":"Tablet","price":25000,"category":"Electronics","isActive":true,"stock":15,"rating":4.6 }
        [HttpPost("add")]
        public IActionResult AddProduct([FromBody] Product product)
        {
            // No need to check ModelState.IsValid — [ApiController] does it automatically
            // If validation fails, ASP.NET Core returns 400 Bad Request with detailed errors

            _productService.Add(product);

            _logger.LogInformation($"New product '{product.Name}' added successfully at {DateTime.UtcNow}.");

            // Returns 201 Created with location header
            return CreatedAtAction(nameof(GetProductById), new { id = product.Id }, product);
        }

        // --------------------------------------------------------------
        // Mix of Multiple Parameters (Route + Query + Header + Service)
        // --------------------------------------------------------------
        // PUT /api/products/discount/2?discountPercent=10
        // Header: X-Api-Key: secret123
        [HttpPut("discount/{id}")]
        public IActionResult ApplyDiscount(
            [FromRoute] int id,
            [FromQuery] decimal discountPercent,
            [FromHeader(Name = "X-Api-Key")] string apiKey,
            [FromServices] IProductService productService)
        {
            if (string.IsNullOrWhiteSpace(apiKey))
                return Unauthorized("Missing API key.");

            if (apiKey != "secret123")
                return Unauthorized("Invalid API key.");

            if (discountPercent <= 0)
                return BadRequest("Discount percent must be greater than zero.");

            // Using service from [FromServices] instead of controller field
            bool updated = productService.UpdatePrice(id, discountPercent);

            if (!updated)
                return NotFound($"No product found with ID {id}.");

            _logger.LogInformation($"Discount of {discountPercent}% applied to Product ID {id} at {DateTime.UtcNow}.");
            return Ok($"Product #{id} updated successfully with {discountPercent}% discount.");
        }
    }
}
Advantages of using Model Binding in ASP.NET Core Web API

We will get the following benefits.

Clean, Minimal Controller Code

No more HttpContext.Request.RouteValues, Request.Query, or StreamReader. Model Binding automatically matches data from the request to action parameters.

Automatic Type Conversion

String values from the request are automatically converted to their proper types (int, decimal, bool, etc.), no need for TryParse.

Built-In Validation

With [ApiController], ASP.NET Core automatically:

  • Checks ModelState after binding.
  • Returns 400 Bad Request with detailed validation errors if the model is invalid.
    You can add [Required], [Range], or [StringLength] attributes on your model for even stronger validation.
Consistent Error Responses

Validation errors are automatically returned in a standardized JSON structure using the ProblemDetails format, making the API responses consistent and client-friendly.

Declarative Data Source Mapping

Attributes like [FromRoute], [FromQuery], [FromHeader], and [FromBody] clearly indicate where each value is expected to come from, improving readability and maintainability.

How Does Model Binding Work in ASP.NET Core Web API?

Model Binding in ASP.NET Core Web API is the behind-the-scenes process that takes raw HTTP request data and converts it into .NET objects that your controller action can use directly. Whether the data comes from a Route, Query String, Header, Form, or Request Body, the Model Binding System automatically locates it, converts it to the target type, validates it, and provides it to your action method.

Let’s walk through the entire process step by step to understand what happens internally when an HTTP request hits your API.

Step 1: Request Received

When a client sends an HTTP request (for example, GET, POST, PUT, or DELETE), it first passes through the Kestrel Web Server and then moves through the Middleware Pipeline. During this journey, middleware components perform various tasks such as authentication, authorization, logging, and routing.

Within the pipeline, the Routing Middleware matches the incoming URL and HTTP method to a specific controller action (endpoint). Once routing identifies the correct endpoint, control is handed over to the Model Binding System, whose job is to populate the Action Parameters with data from the request.

Step 2. Model Binder Selection

When ASP.NET Core identifies the controller action to run, it inspects each action parameter. A Model Binder is the component responsible for:

  • Receiving Raw Input Values (as text, JSON, etc.),
  • Converting them into .NET types,
  • Reporting any binding or conversion errors.

For every parameter, the framework chooses the most appropriate Model Binder based on:

  • The Parameter Type (simple type vs. complex object),
  • The Presence of Binding Attributes such as [FromQuery], [FromBody], [FromRoute], [FromHeader], [FromForm], or [FromServices],
  • And Default Binding Rules, which apply when no attribute is specified:
    • Simple types (int, bool, string, etc.) → from Route or Query String
    • Complex types (custom DTOs or models) → from Request Body

Scenarios:

  • Example → int id + [FromRoute] → SimpleTypeModelBinder
  • Example → ProductDto product + [FromBody] → BodyModelBinder

So, the binder is selected first. It’s the component responsible for converting raw request data into a .NET object.

Built-in Model Binders in ASP.NET Core

ASP.NET Core provides multiple built-in binders, but the four most fundamental are:

  • SimpleTypeModelBinder → Handles primitive and simple types.
  • ComplexTypeModelBinder → Handles classes, DTOs, and complex objects (composed of multiple properties). It is not for the Request Body. It is for a complex object that needs to be mapped from the Query String, Header, or Route data.
  • BodyModelBinder → Handles data coming from the request body (e.g., JSON, XML) and delegates deserialization to input formatters.
  • ServicesModelBinder→ When data is resolved directly from the Dependency Injection container, ASP.NET Core uses ServicesModelBinder. This binder doesn’t read from the HTTP request at all; it resolves instances from the application’s service provider
Step 3. Value Providers (Source Resolution)

After the Model Binder is chosen, it cannot read the HTTP request by itself. Instead, ASP.NET Core provides a collection of Value Providers, specialized helpers that know where to look for data inside the request. The Value Provider extracts simple data from various sources, such as:

  • Route values → /api/employees/5 → {id = 5}
  • Query strings → ?name=Anurag
  • Form fields
  • Headers

The Value Provider only deals with string-based data that can be directly read from the request. It doesn’t handle request bodies like JSON or XML. It hands over this raw key-value data to the Model Binder, which attempts to map it to the action method parameters. Each Value Provider fetches data from a specific location. The following are the built-in Value Providers available in ASP.NET Core:

  • RouteValueProvider – reads values from route segments like /api/products/5.
  • QueryStringValueProvider – reads values from the query string (?id=5&sort=desc).
  • HeaderValueProvider – reads custom or system headers like Authorization or X-Client-Id.
  • FormValueProvider – reads form fields or multipart form data.
  • ServicesModelBinder – resolves objects directly from the Dependency Injection (DI) container.
Model Binder Takes Over (Decides How to Bind the Data)

The Model Binder receives data from the Value Provider (for simple data) and also takes responsibility for handling complex types that might come from the request body. Here’s the key distinction:

  • If the parameter type is Simple (e.g., int, string, or bool), the Model Binder uses Value Providers only.
  • If the parameter type is Complex (e.g., Employee, Order, Product), and it’s decorated with [FromBody], the Model Binder defers the binding process to the Input Formatter system.
Step 4. Type Conversion (Model Binder)

After retrieving raw string values from the request via the Value Provider, the model binder attempts to convert them into the target .NET types expected by the action parameters.

  • Simple Types: Converted using built-in type converters or TryParse() methods (e.g., “10” → int 10, “true” → bool true).
  • Complex Types: For DTOs or model classes, the binder creates an instance and recursively binds each property using the same logic.
  • Request Body (JSON/XML): For body-based models, input formatters handle deserialization into the complex type using configured formatters such as System.Text.Json.

If any type conversion fails (e.g., a string “abc” can’t be parsed as an integer), the binder doesn’t throw an exception. Instead, it records the error in a tracking object called ModelState, which we’ll discuss next.

Step 5. ModelState Population

While binding and type conversion occur, ASP.NET Core maintains a structure called ModelState. ModelState is a dictionary that stores the results of the binding operation. It tracks:

  • The Field Names (parameter or property names),
  • The Raw Values extracted from the request,
  • And any Binding or Conversion Errors that occurred.

So even before validation happens, ModelState already tells you: This is what I tried to bind, this is the data I found, and here’s whether it was successfully converted.

Example:
If the request sends “price”: “abc” and Price expects a decimal, the binder adds an entry in ModelState like:

  • Key: Price
  • AttemptedValue: “abc”
  • Error: The value ‘abc’ is not valid for Price.

Important Note: At this point, validation has not yet happened. ModelState currently reflects only Binding and Conversion Results.

Step 6. Validation Phase

Once model binding completes and ModelState is filled with all data and errors, the Validation Phase begins. At this stage, ASP.NET Core validates the successfully bound model objects using:

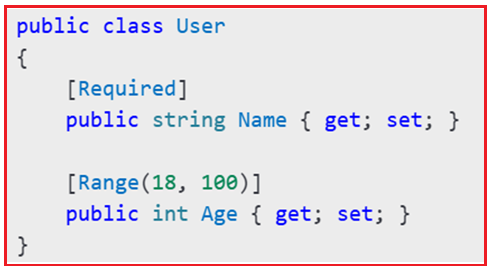

  • Data Annotation Attributes ([Required], [Range], [EmailAddress], [MaxLength], etc.)
  • Or Custom Validation Frameworks such as FluentValidation or custom IValidatableObject logic.

This validation ensures that even if the data was correctly bound, it must also respect your business or domain rules. Any validation failures are also added to ModelState, now combining:

  • Binding/Conversion Errors (from Step 5), and
  • Validation Errors (from Step 6).

Finally, the property ModelState.IsValid summarizes both phases:

  • true → Binding and Validation succeeded
  • false → One or more binding or validation errors exist
Step 7. Error Handling and Automatic 400 Response

After binding and validation, ASP.NET Core decides whether to execute the action or stop early:

  • If your controller is decorated with the [ApiController] attribute, the framework automatically checks ModelState.IsValid.
      • If Invalid → It Short-Circuits the pipeline and returns a 400 Bad Request with detailed error information (using the standardized ProblemDetails JSON format).
      • If Valid → It proceeds to execute the action normally.
  • If [ApiController] is Not Applied, you must manually check ModelState.IsValid and handle errors by returning BadRequest(ModelState);

This automatic 400 response ensures malformed or incomplete requests never reach your business logic.

Step 8. Action Execution

If ModelState is valid, ASP.NET Core now calls your controller action with fully populated, strongly typed parameters. At this point:

  • All type conversions are complete,
  • All validation checks are done,
  • And you have a clean, verified object ready for business logic (database operations, calculations, etc.).

In other words, by the time your code executes, ASP.NET Core has already handled all the tedious parsing, mapping, and validation work for you.

Summary:

Model Binding in ASP.NET Core Web API is like a Smart Translator and Validator that:

  • Reads data from multiple sources (route, query, body, header, form).
  • Converts it into .NET objects automatically.
  • Validates it using annotations or frameworks.
  • Populates the ModelState with results.
  • Handles invalid inputs (even automatically if [ApiController] is used).

Model Binding is a powerful mechanism that hides the complexity of reading, parsing, and validating HTTP requests. It ensures that by the time your action executes, your data is already structured, validated, and ready for use, making ASP.NET Core APIs clean, maintainable, and developer-friendly.

In the next article, I will discuss Model Binding Using FromForm in ASP.NET Core Web API with Examples. In this article, I will try to explain Model Binding Techniques in ASP.NET Core Web API with examples. I hope you enjoy this article, “Model Binding Techniques in ASP.NET Core Web API.”

1 thought on “Model Binding in ASP.NET Core Web API”

Leave a Reply

Your email address will not be published. Required fields are marked *
