Controller Action Return Types in ASP.NET Core Web API

In this article, I will discuss the different Controller Action Method Return Types in ASP.NET Core Web API Applications with Examples. Please read our previous article discussing Routing in ASP.NET Core Web API. At the end of this article, you will understand the different ways to return data from the ASP.NET Core Controller action method.

Controller Action Return Types in ASP.NET Core Web API

When developing ASP.NET Core Web APIs, every controller action we write must return some result to the client, maybe a simple value, a complex object, or an HTTP response message. This “result” that our action returns is known as the Return Type.

Choosing the correct return type is not just about syntax. It affects how our API behaves, which status codes it returns, and how the client interprets your response. Here’s why selecting the correct return type is so important:

  • Clarity of your API: Developers using your API instantly understand what to expect: a string, an object, or an HTTP result.
  • Better Error Handling: You can send detailed error messages and appropriate HTTP codes (like 404, 400, 201) instead of always 200 OK.
  • Improved Client Experience: The client (browser, Postman, or mobile app) receives a predictable and consistent JSON structure.
  • Maintainability: When return types are standardized, the API is easier to evolve, debug, and document (especially via Swagger/OpenAPI).

So, in short, the return type in your controller defines the contract between your API and its consumers.

What Are Controller Action Return Types?

In ASP.NET Core Web API, a Controller Action Return Type defines What Data and How Data is sent back to the client after the controller finishes processing a request.

Think of it as the promise of a response. The action method executes logic, fetches or processes data, and then Returns Something to the client. That “something” could be:

  • A Simple Value like an integer (int) representing a count,
  • A Complex Object like Product or Customer,
  • Or an HTTP-aware response using helpers like Ok(), NotFound(), or BadRequest().

The ASP.NET Core runtime then serializes this return value into JSON (or XML if configured) and sends it in the HTTP response body. The action’s return type not only defines what data is returned, but also how the HTTP response behaves. For example:

  • Returning a string or object implicitly sends 200 OK.
  • Returning NotFound() results in a 404 Not Found.
  • Returning BadRequest() sends 400 Bad Request.

Hence, the Return Type determines:

  1. The HTTP Status Code (success, failure, or error).
  2. The Response Body Content (data or message).
  3. The Client’s Behavior, as clients depend on the HTTP response type to decide the next action.

Categories of Return Types

In ASP.NET Core Web API, we can return data in multiple ways, depending on the level of control and type safety we need. These return types fall into three main categories:

Specific Types (e.g., string, int, object, Product)

These are direct return types. ASP.NET Core automatically assumes a successful request and sends back HTTP 200 OK.

  • If a reference type returns null, the framework sends 204 No Content.
  • This approach is simple but lacks flexibility for real-world error handling.
IActionResult / ActionResult

These return types give us complete control over the HTTP response. We can manually decide:

  • The status code (e.g., 200, 404, 400),
  • The response message,
  • And even attach headers.

You can return various predefined results, such as:

  • Ok(object) → 200 OK
  • NotFound(string) → 404 Not Found
  • BadRequest(string) → 400 Bad Request
  • CreatedAtAction() → 201 Created

This is perfect when you want to return different outcomes (success, error, not found, etc.) within the same method. It is used heavily in real-world REST APIs.

ActionResult<T>

This is a Generic Return Type that merges the benefits of both previous categories. It is introduced in ASP.NET Core 2.1, which combines:

  • Strong Typing (Swagger knows exactly what T is)
  • Flexible HTTP Control (you can still return Ok(), NotFound(), BadRequest())

Hence, it’s considered the best practice for modern APIs.

Asynchronous Return Types

All the above can be combined with Task or Task<T> for asynchronous programming:

  • Task<int>
  • Task<IActionResult> or Task<ActionResult>
  • Task<ActionResult<Product>>

This is important for non-blocking operations, like database queries or external API calls, which improve scalability and performance by freeing up threads during I/O-bound operations.

Examples to Understand Action Return Types in ASP.NET Core Web API

To understand how these return types work in practice, let’s create a Product Management API that mimics an online store like Amazon or Flipkart. Instead of using a database, we will use in-memory data for simplicity. This API demonstrates how different return types behave in real scenarios, such as when we:

  • Fetch the count of all products,
  • Retrieve product details by ID,
  • Get all product names, or
  • Fetch a complete product list.

Each of these examples shows how Return Types change the API’s Response Behavior.

Create a new project.

Open Visual Studio and create a new ASP.NET Core Web API project named ReturnTypeDemo. Inside the root directory, create two folders:

  • Models — to store data structures (like Product.cs)
  • Services — to contain business logic (ProductService.cs)

This folder structure separates concerns: Models handle data, while Services handle logic, making the project more modular and easier to maintain.

Creating Product Model

The Product class represents an individual product in our e-commerce catalog. Each property in this class defines a column-like structure that would typically correspond to a database table in a real-world application.

This class serves as a data transfer model, bridging data between the service and controller layers. When a controller returns a Product, it’s automatically serialized into JSON for the client. So, add a class file named Product.cs within the Models folder and copy-paste the following code.

namespace ReturnTypeDemo.Models
{
    // Represents a Product entity in our in-memory system
    public class Product
    {
        public int Id { get; set; }             // Unique product identifier
        public string Name { get; set; }        // Product name (e.g., "HP Laptop")
        public string Category { get; set; }    // Category (e.g., "Electronics", "Clothing")
        public double Price { get; set; }       // Price in INR
        public bool InStock { get; set; }       // Availability flag
    }
}

Here’s what each property means:

  • Id: Unique identifier for each product (like a ProductID in a table).
  • Name: The product’s display name.
  • Category: Logical grouping (e.g., Electronics, Clothing).
  • Price: The product’s cost in Indian Rupees (INR).
  • InStock: A boolean flag indicating whether the product is currently available.
Creating Product Service

The ProductService class acts as the Business Logic Layer or Data Service Layer. Instead of connecting to an actual database, it uses a static in-memory List<Product> that simulates a data table. This layer decouples business logic from the controller, meaning the controller focuses on HTTP Handling, while the service handles Data Retrieval Logic.

In production APIs, such services would interact with:

  • Databases using EF Core,
  • External APIs,
  • Or caching systems like Redis.

So, add a class file named ProductService.cs within the Services folder and copy-paste the following code. It’s a static class that stores a few hard-coded Product objects and provides methods to fetch or filter them.

using ReturnTypeDemo.Models;
namespace ReturnTypeDemo.Services
{
    public static class ProductService
    {
        // In-memory product list simulating a database table
        private static readonly List<Product> _products = new()
        {
            new Product { Id = 1, Name = "HP Laptop", Category = "Electronics", Price = 55000, InStock = true },
            new Product { Id = 2, Name = "iPhone 15", Category = "Mobiles", Price = 125000, InStock = true },
            new Product { Id = 3, Name = "Samsung TV", Category = "Electronics", Price = 78000, InStock = false },
            new Product { Id = 4, Name = "Nike Shoes", Category = "Footwear", Price = 8500, InStock = true },
            new Product { Id = 5, Name = "Levi’s Jeans", Category = "Clothing", Price = 4500, InStock = true }
        };

        // Returns the total number of products.
        // Demonstrates returning a primitive type(int).
        public static async Task<int> GetProductCountAsync()
        {
            await Task.Delay(300); // Simulate async DB call
            return _products.Count;
        }

        // Returns all available products.
        // Demonstrates returning a collection of complex types(List<Product>).
        public static async Task<List<Product>> GetAllProductsAsync()
        {
            await Task.Delay(400); // Simulate async DB call
            return _products;
        }

        // Searches for a single product by ID.
        // Returns a single complex type or null if not found.
        public static async Task<Product?> GetProductByIdAsync(int id)
        {
            await Task.Delay(300); // Simulate async DB call
            return _products.FirstOrDefault(p => p.Id == id);
        }

        // Returns only product names as strings.
        // Demonstrates returning a collection of primitive types(List<string>).
        public static async Task<List<string>> GetAllProductNamesAsync()
        {
            await Task.Delay(250); // Simulate async DB call
            return _products.Select(p => p.Name).ToList();
        }
    }
}
Code Explanations:
  • The static _products list holds a predefined set of product data. This makes it easier to test the API without requiring a database.
  • Each method in this service is marked as async and uses Task.Delay() to simulate I/O latency, mimicking how real database calls behave asynchronously.

Returning Primitive or Complex Types

This is the simplest and most fundamental way to return data from a controller action in ASP.NET Core Web API. When you return a primitive value (such as int, string, or bool) or a complex object (such as Product, Customer, etc.), the ASP.NET Core framework automatically serializes the data to JSON and sends it back to the client.

For example:

If your controller returns an int (say 5), the response body will contain just 5. If it returns a complex object like Product, the framework converts it into a JSON object, such as:

{
    "id": 2,
    "name": "iPhone 15",
    "category": "Mobiles",
    "price": 125000,
    "inStock": true
}

ASP.NET Core also automatically determines the HTTP status code:

  • If the method successfully returns data → 200 OK
  • If the returned object is null (for reference types) → 204 No Content

This makes development Fast and Straightforward, especially for simple endpoints where everything goes right (no invalid input, no missing data, no exceptions). However, this simplicity comes with a cost; you cannot control the Response Behaviour, such as returning specific status codes or error messages.

When to Use this Return Type?

Using primitive or complex return types is ideal when your application doesn’t require conditional HTTP responses or advanced error handling. Let’s break down when this approach makes sense:

  • For Simple or Prototype APIs: If you’re experimenting, learning, or testing API basics, returning direct data types keeps things minimal and easy to follow. Example: returning a list of static products from memory for a learning demo.
  • For Internal Tools or Educational Projects: Internal tools (used by developers or within teams) often don’t need strict API standards, versioning, or RESTful semantics. In such cases, it’s perfectly fine to skip detailed response control.
  • When You Always Return Data Successfully: If your logic guarantees a result, for instance, counting items in a fixed list, you don’t need to handle conditions like “Product not found”. This is common in static or mock APIs where failure conditions don’t exist.
  • For Small Projects or Proof-of-Concepts: When building quick prototypes or small demos (like showing how controllers work), this method keeps the focus on functionality rather than infrastructure or API response conventions.

In short: If your endpoint always works predictably and returns valid data, you can safely return primitive or complex types directly. But for real-world or public APIs, you’ll soon need more control, which brings us to IActionResult or ActionResult<T>.

Controller Action Returning Primitive & Complex Types

Add an empty Web API Controller named ProductController within the Controllers folder and then copy-paste the following code. The controller consumes ProductService and exposes endpoints demonstrating different return types.

using Microsoft.AspNetCore.Mvc;
using ReturnTypeDemo.Models;
using ReturnTypeDemo.Services;
using System.Collections.Generic;
using System.Threading.Tasks;

namespace ReturnTypeDemo.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class ProductController : ControllerBase
    {
        // Returning Primitive Type - Product Count
        // Example: GET /api/product/GetProductCount
        // Returns an integer (number of products)
        [HttpGet("GetProductCount")]
        public async Task<int> GetProductCount()
        {
            return await ProductService.GetProductCountAsync();
        }

        // Returning Complex Type - Single Product
        // Example: GET /api/product/GetProductById/2
        // Returns a product object (complex type)
        [HttpGet("GetProductById/{id}")]
        public async Task<Product?> GetProductById(int id)
        {
            return await ProductService.GetProductByIdAsync(id);
        }

        // Returning Collection of Complex Types - List<Product>
        // Example: GET /api/product/GetAllProducts
        // Returns list of products (complex type collection)
        [HttpGet("GetAllProducts")]
        public async Task<List<Product>> GetAllProducts()
        {
            return await ProductService.GetAllProductsAsync();
        }

        // Returning Collection of Primitive Types - List<string>
        // Example: GET /api/product/GetAllProductNames
        // Returns list of product names only (primitive type collection)
        [HttpGet("GetAllProductNames")]
        public async Task<List<string>> GetAllProductNames()
        {
            return await ProductService.GetAllProductNamesAsync();
        }
    }
}
What are the Limitations?

While returning primitive or complex types looks clean, it becomes problematic in real-world scenarios where APIs must handle success, failure, and validation differently. Here’s why:

No HTTP Status Code Control

You can’t return custom status codes like 404 Not Found, 400 Bad Request, or 201 Created.
For example, if a product doesn’t exist, your API should ideally say “Product not found (404)”, but instead it silently sends 204 No Content.

Example:
var product = await ProductService.GetProductByIdAsync(id);
if (product == null)
      // You cannot return 404 here without changing the return type.

No Standardized Error Format

Modern APIs follow conventions like ProblemDetails (RFC 7807) for structured error responses:

{
  "type": "https://example.com/errors/not-found",
  "title": "Product not found",
  "status": 404,
  "detail": "The product with ID 7 does not exist."
}

Direct return types cannot produce such structured error messages.

No Custom Headers or Metadata

You can’t include useful headers like:

  • Location (for newly created resources),
  • ETag (for caching),
  • X-Total-Count (for pagination).

This restricts your API from following advanced REST conventions.

Not Suitable for Production APIs

Public-facing APIs must be RESTful, meaning that every operation communicates its result via proper HTTP status codes and structured responses. Returning plain objects doesn’t meet these expectations.

Clients cannot differentiate between success and failure.

From the client’s point of view, both success and failure look similar because everything returns 200 or 204. The client has to guess whether the operation succeeded based on whether the data is empty or null, which is unreliable.

So, returning primitive or complex types is:

  • Great for learning, testing, or internal usage.
  • Not ideal for production APIs where reliability, clarity, and REST standards matter.

For real-world applications, it’s better to move toward IActionResult or ActionResult<T>, which offer more control, flexibility, and expressiveness in HTTP responses.

Returning IActionResult Return Type in ASP.NET Core Web API

IActionResult is an interface that represents the result of an action method in ASP.NET Core Web API. It is a key part of flexible response handling, allowing you to have complete control over the HTTP response, including:

  • Status Codes (e.g., 200 OK, 404 Not Found, 400 Bad Request, 201 Created).
  • Response Body (e.g., the data or message you want to send).
  • Headers (e.g., metadata, ETag, or caching headers).

This makes it far more flexible and expressive than returning a primitive or complex type directly. Instead of simply letting ASP.NET Core assume a successful response (200 OK), you can explicitly choose the most appropriate status code and response message depending on what happened in your logic.

For example:

  • If the operation succeeded → return Ok(data)
  • If the input is invalid → return BadRequest(“Invalid input”)
  • If no resource was found → return NotFound(“Item not found”)
  • If no data needs to be sent → return NoContent()
  • If a resource was created → return CreatedAtAction(“GetById”, new { id = 5 }, data)

By using IActionResult, we gain complete control over our API’s behaviour and communication with the client.

When to Use this Return Type?

When you use simple return types (like int or Product), ASP.NET Core automatically assumes everything is fine and sends back 200 OK. However, real-world APIs are rarely that simple — things go wrong all the time!

Imagine these scenarios:

  • The client requests a product ID that doesn’t exist → should return 404 Not Found.
  • The client sends malformed JSON → should return 400 Bad Request.
  • The server encounters an unexpected exception → should return 500 Internal Server Error.
  • A new product is successfully created → should return 201 Created.

That’s where IActionResult becomes invaluable. It allows your controller to adapt the response to the situation.

Use IActionResult When:
  1. Multiple Outcomes Are Possible: Return 200 when data exists, and 404 when it doesn’t. Example: fetching a product by ID.
  2. Error Handling Is Important: You want to handle and communicate validation errors or invalid requests clearly.
  3. Custom HTTP Codes Are Needed: You need to return non-standard responses, such as 201 Created, 202 Accepted, or 500 Internal Server Error.
  4. POST, PUT, DELETE Operations: These actions often return conditional results,  success, validation error, or conflict, that require explicit status codes.
  5. Consistency in API Behavior: Using IActionResult ensures that your API speaks the universal HTTP “language” that frontend developers and tools (like Postman, Swagger, or Angular services) expect.
Rewriting Our Example Using IActionResult

Let’s rewrite the previous Product Management API using the IActionResult return type. We will keep:

  • The same Product Model
  • The same ProductService (static async in-memory)
  • But rewrite the Controller to use IActionResult for each endpoint.

So, please modify the Product Controller as follows:

using Microsoft.AspNetCore.Mvc;
using ReturnTypeDemo.Services;

namespace ReturnTypeDemo.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class ProductController : ControllerBase
    {
        // Get Total Product Count (Primitive Type wrapped in Ok)
        // Example: GET /api/product/GetProductCount
        // Returns product count with HTTP 200 OK
        [HttpGet("GetProductCount")]
        public async Task<IActionResult> GetProductCount()
        {
            int count = await ProductService.GetProductCountAsync();

            // Always return Ok() to wrap primitive result
            return Ok(count);
        }

        // Get Product by Id (Complex Type)
        // Example: GET /api/product/GetProductById/2
        // Returns product if found; otherwise returns 404 Not Found
        [HttpGet("GetProductById/{id}")]
        public async Task<IActionResult> GetProductById(int id)
        {
            var product = await ProductService.GetProductByIdAsync(id);

            if (product == null)
                return NotFound($"Product with ID = {id} was not found.");

            return Ok(product);
        }

        // Get All Products (Collection of Complex Types)
        // Example: GET /api/product/GetAllProducts
        // Returns list of products (HTTP 200 OK)
        [HttpGet("GetAllProducts")]
        public async Task<IActionResult> GetAllProducts()
        {
            var products = await ProductService.GetAllProductsAsync();

            if (products == null || products.Count == 0)
                return NoContent(); // 204 No Content if list is empty

            return Ok(products);
        }

        // Get All Product Names (Collection of Primitive Types)
        // Example: GET /api/product/GetAllProductNames
        // Returns product names; if none, returns 404 Not Found
        [HttpGet("GetAllProductNames")]
        public async Task<IActionResult> GetAllProductNames()
        {
            var names = await ProductService.GetAllProductNamesAsync();

            if (names == null || names.Count == 0)
                return NotFound("No product names found.");

            return Ok(names);
        }

        // Get Product Details (Custom Error Example)
        // Example: GET /api/product/GetProductDetails/99
        // Demonstrates returning BadRequest & NotFound
        [HttpGet("GetProductDetails/{id}")]
        public async Task<IActionResult> GetProductDetails(int id)
        {
            if (id <= 0)
                return BadRequest("Invalid product ID. Must be greater than zero.");

            var product = await ProductService.GetProductByIdAsync(id);

            if (product == null)
                return NotFound($"Product with ID = {id} not found.");

            return Ok(product);
        }
    }
}
What are the Limitations?

Despite the power IActionResult gives you, it comes with some limitations that you should be aware of, especially when you want a more structured API.

No Compile-Time Type Safety

IActionResult can return any object, which means you lose the Compile-Time Checks that help ensure you’re returning the correct data type. This can cause issues when refactoring or maintaining the code because you don’t know in advance what data type the method is expected to return.

Example:
return Ok(product); // The return type is IActionResult, so it’s not clear what “product” is unless you check it manually.

Swagger/OpenAPI Limitations

When using Swagger or OpenAPI for documentation, the response schema will not be Strongly Typed. Instead of showing the actual object schema, it will simply display the object, making it hard to understand the exact structure of the response. This means client documentation becomes less clear and more ambiguous.

In essence, IActionResult is your go-to return type when you need full flexibility and RESTful behavior, but for strongly typed responses and clearer documentation, the ActionResult<T> type is even more powerful.

Returning ActionResult Return Type (Non-Generic)

ActionResult is a Non-Generic Concrete Class in ASP.NET Core that represents the result of an action method. It’s similar in purpose to IActionResult, but unlike IActionResult (which is an interface), ActionResult is a Base Class for many built-in result types, such as OkResult, BadRequestResult, NotFoundResult, and so on.

When our controller action returns an ActionResult, we can send Different HTTP Responses (status codes and messages) without being tied to a specific data type.

This means you can:

  • Return 200 OK when things go well.
  • Return 400 Bad Request when input is invalid.
  • Return 404 Not Found when data is missing.
  • Return 204 No Content when no data exists to show.

Each of these corresponds to a Different Subclass of ActionResult:

  • OkResult → 200 OK
  • BadRequestResult → 400 Bad Request
  • NotFoundResult → 404 Not Found
  • NoContentResult → 204 No Content
How It Works Internally

When an action method returns ActionResult, the ASP.NET Core runtime inspects which subclass you have returned. It automatically converts it into the appropriate HTTP response with the correct status code and body.

Example:
return Ok(“Data retrieved successfully”);
// Framework sends: HTTP 200 + “Data retrieved successfully”

return NotFound(“Product not found”);
// Framework sends: HTTP 404 + “Product not found”

This gives us control over what our API communicates to the client, without worrying about serialization or headers; ASP.NET Core handles that automatically.

When to Use ActionResult

You should use ActionResult (non-generic) when your API method’s primary purpose is to perform an action (create, update, delete) rather than return a dataset. Let’s explore each case.

When You Don’t Need to Return Typed Data

If your method only needs to indicate whether an operation succeeded or failed, you can use ActionResult. Example:

  • return Ok(); // Operation succeeded
  • return BadRequest(); // Input was invalid
  • return NotFound(); // Resource missing

There’s no need to return ActionResult<Product> or ActionResult<List<Product>> because the purpose isn’t to send data — it’s to report the outcome.

For POST, PUT, or DELETE Endpoints

Operations that modify data often have binary outcomes — they either succeed or fail:

  • POST → create a new record
  • PUT → update an existing record
  • DELETE → remove an item

In these cases, you usually return:

  • 201 Created or 200 OK on success,
  • 400 Bad Request if the input was invalid,
  • 404 Not Found if the resource doesn’t exist.

Returning a simple ActionResult allows you to send these HTTP codes cleanly, without worrying about the specific return type of the data.

Rewrite the Product Management API using ActionResult.

In this version of the Product Management API, each endpoint returns ActionResult instead of IActionResult. While the behavior is similar to IActionResult, this version makes it clearer that the method is returning standardized HTTP responses rather than arbitrary results. So, please modify the ProductController as follows:

using Microsoft.AspNetCore.Mvc;
using ReturnTypeDemo.Services;

namespace ReturnTypeDemo.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class ProductController : ControllerBase
    {
        // -------------------------------------------------------------------
        // Get Total Product Count (Primitive Type wrapped with Ok)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetProductCount
        [HttpGet("GetProductCount")]
        public async Task<ActionResult> GetProductCount()
        {
            int count = await ProductService.GetProductCountAsync();
            return Ok(count); // 200 OK with primitive data
        }

        // -------------------------------------------------------------------
        // Get Product by Id (Complex Type)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetProductById/2
        [HttpGet("GetProductById/{id}")]
        public async Task<ActionResult> GetProductById(int id)
        {
            if (id <= 0)
                return BadRequest("Invalid Product ID. Must be greater than zero.");

            var product = await ProductService.GetProductByIdAsync(id);

            if (product == null)
                return NotFound($"Product with ID = {id} not found.");

            return Ok(product); // 200 OK with object
        }

        // -------------------------------------------------------------------
        // Get All Products (Collection of Complex Types)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetAllProducts
        [HttpGet("GetAllProducts")]
        public async Task<ActionResult> GetAllProducts()
        {
            var products = await ProductService.GetAllProductsAsync();

            if (products == null || products.Count == 0)
                return NoContent(); // 204 No Content

            return Ok(products); // 200 OK with JSON list
        }

        // -------------------------------------------------------------------
        // Get All Product Names (Collection of Primitive Types)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetAllProductNames
        [HttpGet("GetAllProductNames")]
        public async Task<ActionResult> GetAllProductNames()
        {
            var names = await ProductService.GetAllProductNamesAsync();

            if (names == null || names.Count == 0)
                return NotFound("No product names found.");

            return Ok(names); // 200 OK with primitive list
        }

        // -------------------------------------------------------------------
        // Demonstration of Multiple Status Codes
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetProductDetails/0
        // Shows how to send 400, 404, or 200 based on conditions.
        [HttpGet("GetProductDetails/{id}")]
        public async Task<ActionResult> GetProductDetails(int id)
        {
            if (id <= 0)
                return BadRequest("Invalid product ID.");

            var product = await ProductService.GetProductByIdAsync(id);

            if (product == null)
                return NotFound($"Product with ID = {id} not found.");

            return Ok(product);
        }
    }
}
Limitations of ActionResult

Although ActionResult is powerful, it has several drawbacks compared to ActionResult<T>, especially when your API returns typed data frequently.

No Compile-Time Type Safety

When you use ActionResult, the compiler cannot verify what type of object you’re returning.
This means if your API is meant to return a Product, there’s no compile-time check to ensure that.

Example:

public async Task<ActionResult> GetProductById(int id)
{
    // You could accidentally return a string, Product, or int
    // and the compiler won’t warn you.
    return Ok("Unexpected string instead of Product");
}

This can lead to runtime bugs, making your code less predictable and more challenging to maintain.

Swagger/OpenAPI Limitations

When generating API documentation via Swagger (OpenAPI), ActionResult responses are shown as “object” because Swagger cannot infer the specific schema type. That means clients won’t automatically know whether to expect:

  • A Product
  • A List<Product>
  • Or a simple message string.

This makes API documentation less informative and requires manual annotations (e.g., [ProducesResponseType(typeof(Product), 200)]) for clarity.

Difficult for API Consumers

Because the response type is generic and untyped, clients (such as frontend developers or external integrators) cannot easily determine the structure of the response payload. For example, TypeScript or OpenAPI-generated SDKs will treat it as any instead of a typed model, reducing compile-time safety on the client side.

Not Ideal for GET Endpoints

For endpoints whose primary purpose is returning data (like /api/products), the non-generic ActionResult isn’t ideal. Instead, use ActionResult<T> to:

  • Preserve strong typing,
  • Enable Swagger schema generation,
  • Make your intent clear, i.e., “This action returns a list of Product objects.”
Differences between ActionResult and IActionResult:

Let’s understand the differences between ActionResult and IActionResult.

  1. IActionResult is an Interface, whereas ActionResult is a Concrete Class that implements that interface.
  2. IActionResult represents Any Possible Action Result, while ActionResult is a base class for the built-in result types such as OkResult, NotFoundResult, and BadRequestResult.
  3. IActionResult offers Maximum Flexibility; you can return any custom type that implements the interface. ActionResult is used when you’re returning standard HTTP responses provided by the framework.
  4. With IActionResult, you can create and use custom result classes easily. With ActionResult, you typically use predefined framework results.
  5. Neither is strongly typed, but ActionResult serves as the foundation for ActionResult<T>, which introduces strong typing.

In practice, IActionResult is preferred for General or Custom Responses, while ActionResult is often used for Simple Rest-Style Endpoints that return standard status codes.

Returning ActionResult<T> Return Type in ASP.NET Core Web API

The ActionResult<T> return type (introduced in ASP.NET Core 2.1) is the Perfect Blend of two powerful features:

  1. Type Safety (like returning a specific model such as Product, List<Product>, or string)
  2. HTTP Response Control (like returning Ok(), BadRequest(), NotFound(), etc.)

In simple words, ActionResult<T> lets you return strongly typed data and control HTTP status codes and error responses, all within the same method signature

Traditionally, developers had two choices:

  1. Return Only Data → Task<Product>
      • Simple, but limited (always returns 200 OK).
  2. Return IActionResult → Task<IActionResult>
      • Flexible, but not strongly typed (Swagger can’t show schema).

ActionResult<T> solves both problems by allowing a single action method to:

  • Return a typed object (T), and
  • Return HTTP-specific responses (Ok(), NotFound(), BadRequest(), etc.)

So, ActionResult<T> gives you the best of both worlds. For example:

public async Task<ActionResult<Product>> GetProductById(int id)
{
    if (id <= 0)
        return BadRequest("Invalid ID");

    var product = await ProductService.GetProductByIdAsync(id);

    if (product == null)
        return NotFound("Product not found");

    return Ok(product);
}

Here, ActionResult<Product> tells the compiler and Swagger:

  • The method usually returns a Product object when successful.
  • But it can also return an HTTP status code, such as 400 or 404, when there’s a problem.

At runtime:

  • If you return a typed value via Ok(product) → it serializes to JSON and sends HTTP 200 OK.
  • If you return NotFound() → ASP.NET Core sends HTTP 404 with your message.
  • If you return BadRequest() → sends HTTP 400 Bad Request.

So ActionResult<T> can represent:

  • A successful return value (T)
  • An HTTP-specific result (any derived IActionResult type)

This dual capability makes it the best practice return type for modern RESTful APIs.

When to Use this Return Type?

ActionResult<T> is considered best practice for almost all production-grade ASP.NET Core Web APIs, especially when endpoints are designed to return data and handle errors gracefully. Let’s understand each scenario more clearly

When Building Real-World REST APIs That Return Data and Handle Errors

In real-world applications (e.g., e-commerce, banking, booking systems), no API is guaranteed to succeed every time. You might need to handle:

  • Missing data (404 Not Found)
  • Validation errors (400 Bad Request)
  • Successful responses (200 OK)
  • Empty results (204 No Content)

With ActionResult<T>, you can handle all of these cases in a single method while keeping the response type (T) predictable.

Example:

public async Task<ActionResult<Product>> GetProductById(int id)
{
    if (id <= 0) return BadRequest("Invalid ID");
    var product = await ProductService.GetProductByIdAsync(id);
    if (product == null) return NotFound();
    return Ok(product);
}
When You Want Strong Typing and Swagger-Friendly Documentation

Swagger/OpenAPI tools automatically analyze the <T> type in ActionResult<T>. That means when you use it:

  • The response schema in Swagger clearly shows what object the API returns.
  • The response types (200, 400, 404) are clearly documented.

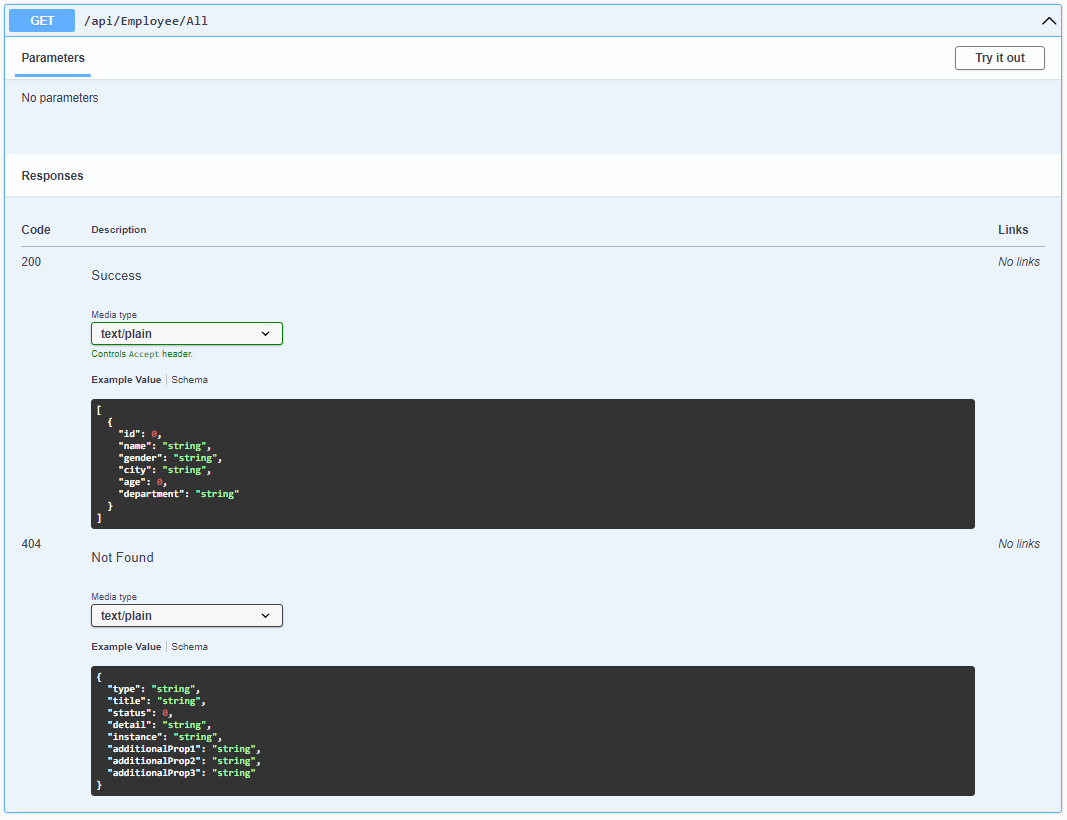

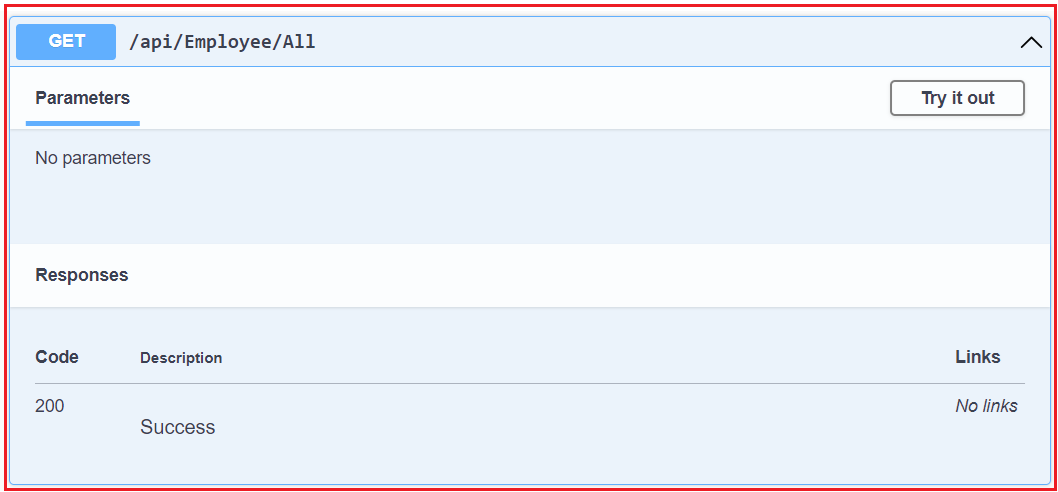

Without ActionResult<T>, Swagger often just shows an object, which is ambiguous. With it, Swagger shows something like:

  1. 200: Product
  2. 400: ProblemDetails
  3. 404: ProblemDetails

Better for API consumers and auto-generated client SDKs.

When You Want Clean Handling of Success and Failure

ActionResult<T> encourages clear, self-documenting methods:

  • Return Ok(T) when successful.
  • Return BadRequest() for validation errors.
  • Return NotFound() for missing data.

All within a single, strongly typed return type, no casting, no manual schema management.

When You Need Compile-Time Type Checking

With ActionResult<T>, the compiler knows the type your method returns on success. This prevents mistakes like returning the wrong object type or a string when you meant to return a model.

Example:

// Compile-time error if you accidentally return a string instead of Product
public async Task<ActionResult<Product>> GetProduct()
{
    return Ok("Wrong type"); //compile-time warning
}
When You Want to Combine Clarity (T) with Control (HTTP Results)

With ActionResult<T>, your controller method:

  • Clearly tells the client what kind of data it returns (clarity).
  • Let you choose the exact HTTP response type (control).

This makes it perfect for GET, POST, PUT, and even some DELETE operations.

Rewrite the Product Management API using ActionResult<T>

In this improved version, every endpoint:

  • Is Strongly Typed (ActionResult<int>, ActionResult<Product>, etc.).
  • Can still return HTTP Responses (BadRequest, NotFound, NoContent, etc.).
  • Has Swagger-Friendly, predictable output.

So, please modify the Product Controller as follows:

using Microsoft.AspNetCore.Mvc;
using ReturnTypeDemo.Models;
using ReturnTypeDemo.Services;

namespace ReturnTypeDemo.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class ProductController : ControllerBase
    {
        // -------------------------------------------------------------------
        // Get Total Product Count (Primitive Type)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetProductCount
        // Returns int wrapped inside ActionResult<int>
        [HttpGet("GetProductCount")]
        public async Task<ActionResult<int>> GetProductCount()
        {
            int count = await ProductService.GetProductCountAsync();

            // Returning typed Ok() response
            return Ok(count);
        }

        // -------------------------------------------------------------------
        // Get Single Product by Id (Complex Type)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetProductById/2
        // Returns ActionResult<Product> with proper status handling
        [HttpGet("GetProductById/{id}")]
        public async Task<ActionResult<Product>> GetProductById(int id)
        {
            if (id <= 0)
                return BadRequest("Invalid Product ID. It must be greater than zero.");

            var product = await ProductService.GetProductByIdAsync(id);

            if (product == null)
                return NotFound($"Product with ID = {id} not found.");

            return Ok(product);
        }

        // -------------------------------------------------------------------
        // Get All Products (Collection of Complex Types)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetAllProducts
        // Returns ActionResult<List<Product>>
        [HttpGet("GetAllProducts")]
        public async Task<ActionResult<List<Product>>> GetAllProducts()
        {
            var products = await ProductService.GetAllProductsAsync();

            if (products == null || products.Count == 0)
                return NoContent(); // 204 if list is empty

            return Ok(products);
        }

        // -------------------------------------------------------------------
        // Get All Product Names (Collection of Primitive Types)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetAllProductNames
        // Returns ActionResult<List<string>>
        [HttpGet("GetAllProductNames")]
        public async Task<ActionResult<List<string>>> GetAllProductNames()
        {
            var names = await ProductService.GetAllProductNamesAsync();

            if (names == null || names.Count == 0)
                return NotFound("No product names found.");

            return Ok(names);
        }

        // -------------------------------------------------------------------
        // Get Product Details (Complex + Error Handling)
        // -------------------------------------------------------------------
        // Example: GET /api/product/GetProductDetails/99
        // Demonstrates multiple return types in one method.
        [HttpGet("GetProductDetails/{id}")]
        public async Task<ActionResult<Product>> GetProductDetails(int id)
        {
            if (id <= 0)
                return BadRequest("Invalid product ID.");

            var product = await ProductService.GetProductByIdAsync(id);

            if (product == null)
                return NotFound($"No product found with ID = {id}");

            return Ok(product);
        }
    }
}
Recommended Option:

Choosing the correct return type in an ASP.NET Core Web API is not just about syntax — it’s about designing clear, reliable, and predictable communication between your server and its clients.

  • For simple, straightforward endpoints or internal prototypes, returning Primitive or Complex Types is sufficient.
  • When you need flexible HTTP responses, IActionResult/ActionResult offers complete control over status codes and messages.
  • And in the real world, production-grade APIs, ActionResult<T> is the best practice — combining type safety, clarity, and complete HTTP control while keeping your Swagger documentation accurate and meaningful.

In short, ActionResult<T> represents the ideal balance of type safety, expressiveness, and RESTful design, making it the recommended standard for modern ASP.NET Core Web APIs.

In the few upcoming articles, we will discuss the most useful  Status Code Methods in ASP.NET Core Web API Applications. In this article, I explain Controller Action Method Return Types in an ASP.NET Core Web API Application with examples. I hope you enjoy the article on how to handle different return types in ASP.NET Core Web API Controller action methods.

2 thoughts on “Action Return Types in ASP.NET Core Web API”

Leave a Reply

Your email address will not be published. Required fields are marked *
