Introduction to Entity Framework

In this article, I am going to give you a brief introduction to the Entity Framework. Before .NET 3.5 as a developer, we often used to write ADO.NET code to perform CRUD operations with the underlying database. For this, we need to create a Connection Object with the database, then Open the Connection, Create the Command Object and execute the Command using Data Reader or Data Adapter. And then we create DataSet or DataTables to store the data in memory to perform different types of Operations on the Data as per the business requirements. Actually, this is a Time-Consuming, and Error-Prone Process. Microsoft has provided a framework called “Entity Framework” to automate all these database-related activities for our application and for this to work, we just need to provide the necessary details to the Entity Framework.

What is the Entity Framework?

Entity Framework is an Open-Source Object-Relational Mapping (ORM) Framework for .NET applications that enables .NET developers to work with relational data using domain-specific objects without focusing on the underlying database tables and columns where actually the data is stored. That means the Entity Framework eliminates the need for writing the data-access code that developers usually need to write.

Official Definition: Entity Framework is an object-relational mapper (O/RM) that enables .NET developers to work with a database using .NET objects. It eliminates the need for most of the data-access code that developers usually need to write.

What is an Object-Relational Mapping Framework?

Object Relational Mapping framework automatically creates classes based on database tables, and vice versa is also true, that is, it can also automatically generate the necessary SQL to create database tables based on classes. The following diagram illustrates where the Entity Framework fits into our application.

SPONSOR AD

Where Entity Framework used in our application

The above diagram shows that the Entity Framework fits between the Data Layer and the database. It saves the data in the database which are stored in the properties of the business entities (domain classes) and also retrieves the data from the database and converts it to business entities objects automatically.

What Entity Framework Can do for us?

Let’s understand what entity framework can do for us with an example. Assume we have the following 2 tables (Departments and Employees).

what entity framework can do for us with an example

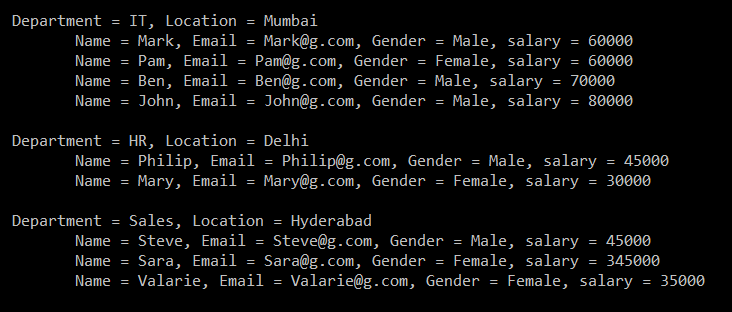

We want to display the data from both tables (Departments and Employees) in a console application as shown below.

Introduction to Entity Framework
To achieve this
  1. We need to create Department and Employee classes
  2. We need to write ADO.NET code to retrieve the data from the database
  3. Once the data is retrieved we need to create Department and Employee objects and populate them with the retrieved data.

But Entity Framework can do all of the above automatically for us if we provide the necessary database schema to the Entity Framework. Let us understand this step by step how to achieve the same using Entity Framework.

Creating the Database Schema to Understand Entity Framework

Please use the below SQL script to create the database EF_Demo_DB, and tables Departments and Employees, and populate the tables with sample data.

SPONSOR AD
-- Create the EF_Demo_DB database.
CREATE DATABASE EF_Demo_DB;
GO

-- Use EF_Demo_DB database
USE EF_Demo_DB;
GO

-- Create Departments table
CREATE TABLE Departments
(
     ID INT PRIMARY KEY IDENTITY(1,1),
     Name VARCHAR(50),
     Location VARCHAR(50)
)
Go

-- Create Employees table.
CREATE TABLE Employees
(
     ID INT PRIMARY KEY IDENTITY(1,1),
     Name VARCHAR(50),
     Email VARCHAR(50),
     Gender VARCHAR(50),
     Salary INT,
     DepartmentId INT FOREIGN KEY REFERENCES Departments(ID)
)
Go

--Populate the Departments table with some test data
INSERT INTO Departments VALUES ('IT', 'Mumbai')
INSERT INTO Departments VALUES ('HR', 'Delhi')
INSERT INTO Departments VALUES ('Sales', 'Hyderabad')

Go
--Populate the Employees table with some test data
INSERT INTO Employees VALUES ('Mark', 'Mark@g.com', 'Male', 60000, 1)
INSERT INTO Employees VALUES ('Steve', 'Steve@g.com', 'Male', 45000, 3)
INSERT INTO Employees VALUES ('Pam', 'Pam@g.com', 'Female', 60000, 1)
INSERT INTO Employees VALUES ('Sara', 'Sara@g.com', 'Female', 345000, 3)
INSERT INTO Employees VALUES ('Ben', 'Ben@g.com', 'Male', 70000, 1)
INSERT INTO Employees VALUES ('Philip', 'Philip@g.com', 'Male', 45000, 2)
INSERT INTO Employees VALUES ('Mary', 'Mary@g.com', 'Female', 30000, 2)
INSERT INTO Employees VALUES ('Valarie', 'Valarie@g.com', 'Female', 35000, 3)
INSERT INTO Employees VALUES ('John', 'John@g.com', 'Male', 80000, 1)
Go
Create a Console Application

Once the database is ready, in the next step, create a new “Console Application” with the name EFDemo as shown in the below image.

Create a Console Application

Example without using Entity Framework:

Let us first see the example without using Entity Framework and then we will see the same example using Entity Framework. In the below example, we are using ADO.NET to interact with the database to fetch the data and display it in the console.

using System;
using System.Data;
using System.Data.SqlClient;
namespace EFDemo
{
    class Program
    {
        static void Main(string[] args)
        {
            try
            {
                string ConnectionString = @"data source=LAPTOP-ICA2LCQL\SQLEXPRESS; database=EF_Demo_DB; integrated security=SSPI";
                using (SqlConnection connection = new SqlConnection(ConnectionString))
                {
                    //Create the SqlDataAdapter instance by specifying the command text and connection object
                    SqlDataAdapter dataAdapter = new SqlDataAdapter("SELECT * FROM Departments; SELECT * FROM Employees;", connection);

                    //Creating DataSet Object
                    DataSet dataSet = new DataSet();

                    //Filling the DataSet using the Fill Method of SqlDataAdapter object
                    dataAdapter.Fill(dataSet);

                    DataTable DepartmentDataTable = dataSet.Tables[0];
                    DataTable EmployeeDataTable = dataSet.Tables[1];

                    foreach (DataRow row in DepartmentDataTable.Rows)
                    {
                        Console.WriteLine($"  Department = {row["Name"]}, Location = {row["Location"]}");
                        DataView dataView = EmployeeDataTable.DefaultView;
                        //Applying Single Filter
                        dataView.RowFilter = "DepartmentId = " + row["ID"];

                        foreach (DataRowView rowView in dataView)
                        {
                            DataRow emp = rowView.Row;
                            Console.WriteLine($"\t Name = {emp["Name"]}, Email = {emp["Email"]}, Gender = {emp["Gender"]}, salary = {emp["Salary"]}");
                        }
                    }
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"Exception Occurred: {ex.Message}");
            }

            Console.ReadKey();
        }
    }
}

Now, run the application and you will get the output as expected as shown in the below image.

Example without using Entity Framework

Here, you can observe we have created the connection object, created the data adapter object, and created Dataset, Data Tables, and DataView objects. And here we are also writing the SQL Commands to fetch the data from the database tables and fill the dataset. We can avoid all these ADO.NET Related things if we use Entity Framework. Let us proceed and see how we can rewrite the same example using Entity Framework using C# language.

Adding ADO.NET Entity Data Model

To use Entity Framework, we need to add ADO.NET Entity Data Model. To do so, Right-click on the project in solution explorer and select Add => New Item, and then click on Data Section from the left side panel and choose ADO.NET Entity Data Model from the middle panel, Change the name from Model1 to EmployeeDataModel and click on the Add button as shown in the below image.

Adding ADO.NET Entity Data Model

Once you click on the Add button, it will open the Choose Data Model wizard as shown below. From this window select “EF Designer from database” and click on the Next button as shown in the below image. Here, select the “EF Designer from database” option as we are going to use the Entity Framework Database First Approach.

SPONSOR AD

Entity Framework database First Approach

Once you click on the Next button, It will open choose your data connection wizard as shown below. From this window click on the New Connection button as shown in the below image.

choose your data connection wizard

Once you click on the New Connection button, it will open a popup for providing the database details as shown below. From this connection properties screen,

  1. Select “Microsoft SQL Server” as the Data Source, and the “.Net Framework Data Provider for SQL Server” option from the “Data provider” drop-down list. Click Continue.
  2. On the “Connection Properties” screen, specify SQL Server Name.
  3. Specify the Authentication you want to use.
  4. Select the database from the “Select or Enter a Database Name” drop-down list.
  5. Finally “Test Connection” and click “OK”

Net Framework Data Provider for SQL Server

Once you click on the OK button, you will be back on to the “Choose Your Data Connection” window as shown below. Make sure the “Save entity connection settings in App.Config as” checkbox is selected and change the name of the connection string to EF_Demo_DBEntities and then Click on the “Next” button as shown in the below image.

Introduction to Entity Framework

Once you click on the Next button, it will open a popup asking you to choose the Entity Framework version as shown below. From this window, select Entity Framework 6.x and click on the Next button as shown in the below image.

Entity Framework Version

Once you click on the Next button, it will open Choose Your Database Objects as shown below. From the below window, select the “Departments” and “Employees” tables. Change the Model Namespace to “EmployeeModel” and click on the “Finish” button as shown in the below image.

SPONSOR AD

Choose Your Database Objects in Entity Framework database First Approach

Once you click on the “Finish” button, it should generate the EmployeeDataModel.EDMX file.

EDMX File

Following is the structure of the EDMX file.

File structure of EDMX file

The Entity Framework Create Employee and Department classes automatically based on the Employees and Departments Tables. Tables are mapped to classes and columns are mapped to class properties.

Using Entity Framework in C#:

Now copy and paste the following code in the main method of the program class as shown below. Here, in this article, I am not going to explain the code. Here, I just want to show how to use Entity Framework. From our next article onwards, I am going to explain everything in detail.

using System;
using System.Collections.Generic;
using System.Linq;
namespace EFDemo
{
    class Program
    {
        static void Main(string[] args)
        {
            using (EF_Demo_DBEntities DBEntities = new EF_Demo_DBEntities())
            {
                List<Department> listDepartments = DBEntities.Departments.ToList();
                Console.WriteLine();
                foreach (Department dept in listDepartments)
                {
                    Console.WriteLine("  Department = {0}, Location = {1}", dept.Name, dept.Location);
                    foreach (Employee emp in dept.Employees)
                    {
                        Console.WriteLine("\t Name = {0}, Email = {1}, Gender = {2}, salary = {3}",
                            emp.Name, emp.Email, emp.Gender, emp.Salary);
                    }

                    Console.WriteLine();
                }
                Console.ReadKey();
            }
        }
    }
}

Run the application and notice that Departments and Employees data are displayed as expected as shown in the below image. We have achieved all this without writing a single line of ADO.NET code. If this is not clear at this moment how it works, don’t worry we will discuss everything in detail in our upcoming articles.

Using Entity Framework in C#
Why do we need to use Entity Framework in .NET Applications?

Entity Framework is an ORM Tool and ORMs Tools are basically used to increase the developer’s productivity by reducing the redundant task of doing CRUD operation against a database in a .NET Application.

  1. Entity Framework can generate the necessary database commands for doing the database CRUD Operation i.e. can generate SELECT, INSERT, UPDATE and DELETE commands for us.
  2. While working with Entity Framework, we can perform different types of operations on the domain objects (basically classes representing database tables) using LINQ to entities.
  3. Entity Framework will generate and execute the SQL Command in the database and then store the results in the instances of your domain objects so that you can do different types of operations on the data.
Entity Framework Features:
  1. Cross-platform: EF Core is a cross-platform framework which means it can run on Windows, Linux, and Mac operating systems.
  2. Modeling: EF (Entity Framework) creates an EDM (Entity Data Model) based on POCO (Plain Old CLR Object) entities with get/set properties of different data types. It uses this model also when querying or saving entity data to the underlying database.
  3. Querying: EF allows us to use LINQ queries (C#/VB.NET) to retrieve data from the underlying database. The database provider will translate these LINQ queries to the database-specific query language (e.g. SQL for a relational database). EF also allows us to execute raw SQL queries directly to the database.
  4. Change Tracking: EF keeps track of changes that occurred to instances of our entities (Property values) that need to be submitted to the database.
  5. Saving: EF executes INSERT, UPDATE, and DELETE commands to the database based on the changes that occurred to our entities when we call the SaveChanges() method. EF also provides the asynchronous SaveChangesAsync() method.
  6. Concurrency: EF uses Optimistic Concurrency by default to protect against overwriting changes made by another user since data was fetched from the database.
  7. Transactions: EF performs automatic transaction management while querying or saving data. It also provides options to customize transaction management.
  8. Caching: EF includes the first level of caching out of the box. So, repeated querying will return data from the cache instead of hitting the database.
  9. Built-in Conventions: EF follows conventions over the configuration programming pattern, and includes a set of default rules which automatically configure the EF model.
  10. Configurations: EF allows us to configure the EF model by using data annotation attributes or Fluent API to override default conventions.

In the next article, I am going to discuss the Architecture of the Entity Framework. Here, in this article, I try to explain Introduction to Entity Framework with an example. I hope this article will help you with your need. I would like to have your feedback. Please post your feedback, question, or comments about this article
